- Description
- 14" Non-ferrous straight cut saw for cutting ALUMINUM
and other non-ferrous materials. - Uses carbide tipped dry cut blade for cutting both materials!
- Good for angle up to 1/4″ thick …will also cut aluminum!
- Abrasive blade can also be used
- Straight cut 90 degrees
- Double v-belt drive
- 3,450 RPM motor
- 4,400 spindle speed.
- Cast iron base, trunnion and arm.
- OSHA safety clamshell wheel guard.
- Mag. switch.
- 1″ spindle
- Sealed ball bearings
- Two easy-set screw vises to hold work on both sides. Opens 5″
- HS14DC: 14" Dry Cut for Aluminum AND light Gauge Steel! 1,300 RPM @ spindle.
- Manufacturer
- Specifications
- Options/Accessories
- PH-14: Power down feed
- AV-18: Air Vise
- Custom Freight

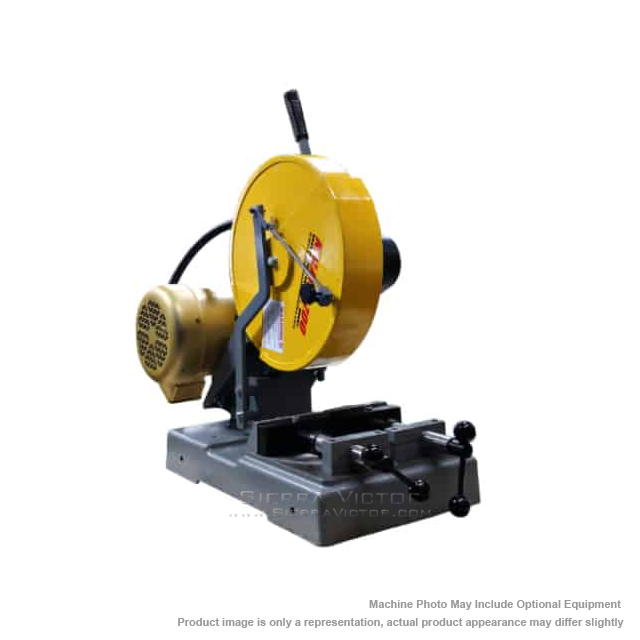

KALAMAZOO HS14, 14″ Non-Ferrous saw
ITEM: 14" Aluminum/Brass/Plastic Non-Ferrous Saws
MANUFACTURER: KALAMAZOO
MODEL: HS14 / HS14DC
Manufacturer:
Kalamazoo Industries
|
MODEL
|
HS14
|
HS14DC
|
|
Capacity
|
4" square, round and shapes. 3" solids.
|
|
|
Motor
|
5 hp, 3 ph, 220 or 440V
|
|
|
Spindle Speed
|
4,400 RPM
|
1,300 RPM
|
|
Weight
|
240 lbs.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
