- Description
- The S4SV 4 x 36 inch sander with vacuum is a robust and versatile tool suitable for various sanding applications. It can sand array of materials, from wood to metal.
- Single phase amp motor that draws 110V 7 amps
- Two-position sander head (vertical and or horizontal)
- Adjustable and replaceable steelwork table
- Cast iron platen.
- Preset spring belt tension.
- Sealed bearings in idler pulley
- Cast iron yoke
- Cast iron frame and platen
- Easy to change parts
- Easy to track sanding belt
- Full-boxed guard
- Quick belt change

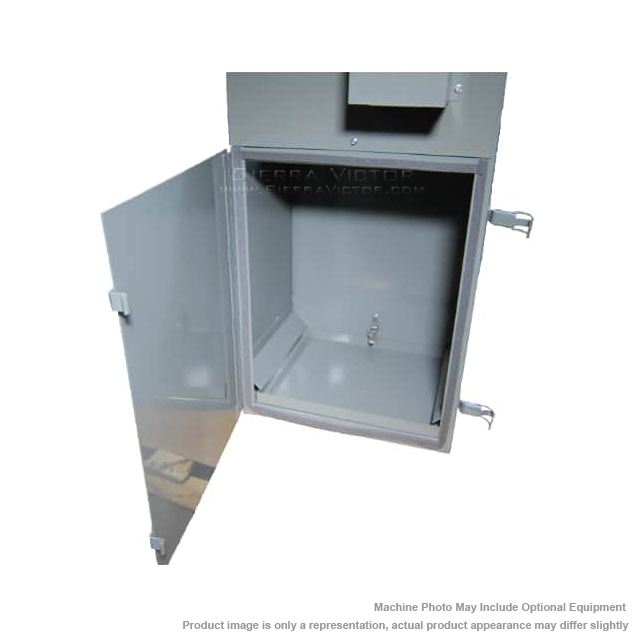

- Dust collector base with replaceable filter
- Replaceable cloth filter

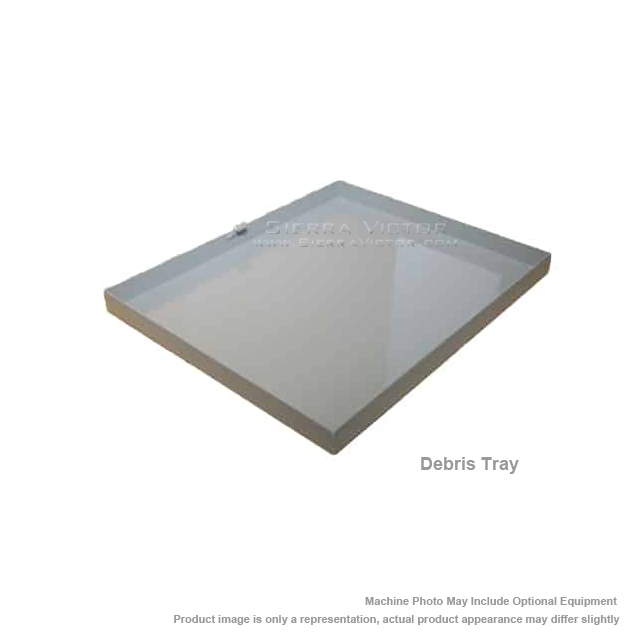

- Clean out tray
-
Overall Belt Sander With Vacuum Benefits
- High-powered motor for fast material removal
- Built-in dust collector for a clean work environment
- Adjustable work table for versatility
- Heavy-duty construction for durability
- Easy to use and maintain
- Belt Sander Sanding Applications
- Bevel
- Deburr
- Squaring up ends
- Round flat corners
- Clean-up work
- Remove rust
- Flatwork
- Designed To Sand The Following
- Wood:
- Hardwoods (oak, maple, walnut, etc.)
- Softwoods (pine, cedar, fir, etc.)
- Plywood
- Veneers
- Metals:
- Steel (various grades)
- Aluminum
- Brass
- Bronze
- Other ferrous and non-ferrous metals (Note: Use appropriate grit sanding belts for the specific metal)
- Plastics:
- Many types, but it’s recommended to test on a scrap piece first to ensure compatibility.
- Composites:
- Some can be sanded, but always research specific recommendations for the composite you intend to work with.
- Manufacturer
- Specifications

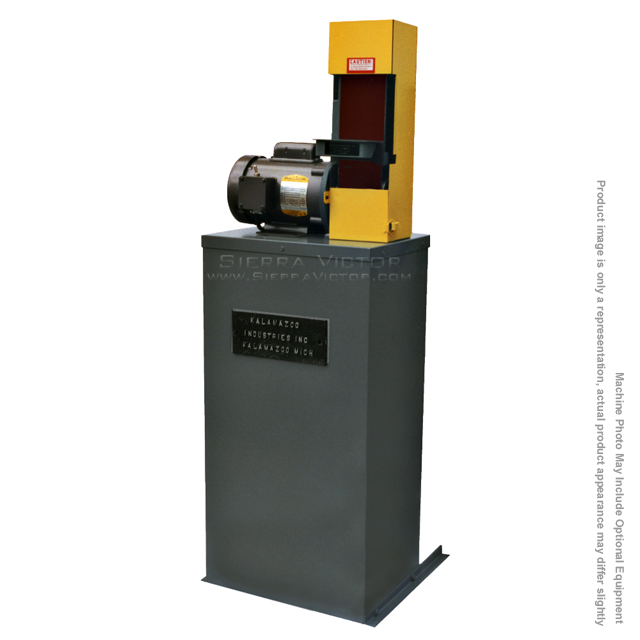

KALAMAZOO Sanders with Dust Collector Base S4SV, S4SV-1 - MADE IN USA!
ITEM: 4" x 36" Sanders with Dust Collector Base
MANUFACTURER: KALAMAZOO
MODEL: S4SV / S4SV-1
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
4"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Belt
MODEL |
S4SV |
S4SV-1 |
Motor |
1/2 HP, 1 phase, 115V |
1HP, 1PH |
Motor RPM |
3450 RPM |
|
Single phase |
amp motor that draws 110V 7 amps |
|
Belt Speed |
3,600 SFPM |
|
Belt Dimensions |
4 x 36 in. |
|
Platen size |
7.25 H x 4.25 W in. |
|
Work table size |
5 x 2.5 D in. |
|
Work area |
5.5 H x 4.25 W in. |
|
Dust collect CFM |
100 CFM |
|
Shipping Weight |
115 lbs. |
|
Sander shipping dimensions |
L 12 x W 19 x H 21 in. |
|
Vacuum shipping dimensions |
L 20 x W 20 X H 37 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
