- Description
- The S4S 4" x 36" inch industrial belt sander is the perfect tool for tackling a variety of sanding tasks, from deburring and shaping wood and metal to smoothing out rough surfaces.
- Motor specifications: 1/2 HP 1 phase 115V
- Switch type: on/off toggle switch
- Motor RPM 3450 RPM motor
- Belt speed: 3600 SFPM.

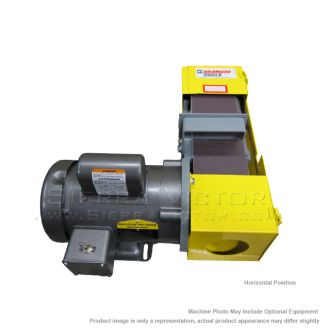

- Two-position sander head (vertical and or horizontal)
- Adjustable and replaceable steel work table
- Work table size: 5" x 2.5" D. Adjustable to 20° up and 45° down
- Cast iron frame with platen
- Platen size: 7.25" H x 4.25" W
- Work area: 5.5" H x 4.25" W
- Preset spring belt tension
- Aluminum drive pulley
- Idler pulley with sealed bearings
- Cast iron yoke
- Heavy-duty construction
- Easy to track sanding belt
- Full-boxed guard
- All metal construction
- Quick belt change
- Made In The USA!
- Designed To Do The Following
- Removing sharp edges and burrs from:
- Metal workpieces (e.g., after cutting, drilling, or grinding)
- Wood workpieces (e.g., after sawing or routing)
- Plastic workpieces (with appropriate sanding belts)
- Smoothing rough surfaces on:
- Wood (e.g., before finishing)
- Metal (e.g., before painting or coating)
- Flattening uneven surfaces on:
- Wood (e.g., tabletops, doors)
- Metal (e.g., sheet metal, plates)
- Removing rust from metal surfaces
- Cleaning up old paint or finishes from wood or metal
- Preparing surfaces for bonding or adhesives
- Removing sharp edges and burrs from:
- Materials the S4S Can Sand
- Wood: Softwoods, hardwoods, plywood, veneers, etc.
- Metal: Steel, aluminum, brass, and other ferrous and non-ferrous metals (use appropriate sanding belts).
- Plastics: Many types of plastics, but test on a scrap piece first.
- Fiberglass: Use caution and appropriate sanding belts to avoid damaging the material.
- Composites: Some composites can be sanded with the S4S, but research specific recommendations for the type you’re working with.
- Manufacturer
- Specifications

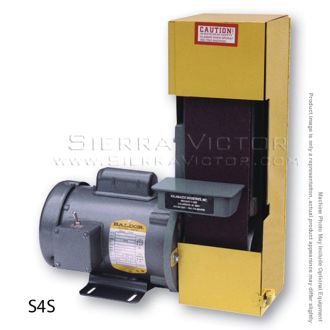

KALAMAZOO 4 x 36 inch Industrial Belt Sander S4S
ITEM: 4" x 36" All Purpose Belt Sanders
MANUFACTURER: KALAMAZOO
MODEL: S4S / S4S-1
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
4"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Belt
Position:
Vertical/Horizontal
MODEL
|
S4S
|
S4S-1 |
Belt Size |
4 x 36 in. |
|
Motor |
1/2 HP, 1 phase, 115V |
1 HP |
Switch type |
on/off toggle switch |
|
Motor RPM |
3450 RPM motor |
|
Belt speed |
3600 SFPM |
|
Work table size |
5 x 2.5 D in. |
|
Adjustable Work table |
20° up and 45° down |
|
Platen size |
7.25 H x 4.25 W in. |
|
Work area |
5.5 H x 4.25 W in. |
|
Shipping dimensions |
W 12 x H 20 x D 22 in. |
|
Shipping weight |
50 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
