- Description
- This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!
- ISO 9001 certified
- Taiwan machines
- comes with go-to NC power back gauge with touch screen
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

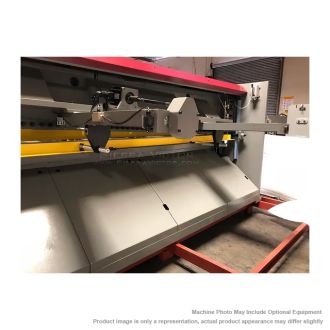

- 36" go to NC back gauge w/ touch screen
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 4 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Manufacturer
- Specifications
- Options/Accessories
- 440V 3-Phase is optional (Special order)
- Safety fence for enclosure of the back side of the machine - $CALL
- Video
GMC 10 ft x 1/4 in. Heavy Duty Hydraulic Metal Shear HS-1025E
EQUIPPED WITH:
ITEM: 10 ft x 1/4 in. Heavy Duty Hydraulic Metal Shear
MANUFACTURER: GMC
MODEL: HS-1025E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Material Type:
Metal
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
1/4"
Stainless Steel Capacity:
10 ga
|
MODEL
|
HS-1025E
|
|
Cutting Capacity: Mild Steel
|
10 ft x 1/4 in.
|
|
Cutting Capacity: Stainless Steel
|
10 ft x 10 ga.
|
|
Cutting Capacity: Soft Aluminum
|
10 ft x 3/8 in.
|
|
Min. Thickness
|
20 ga.
|
|
Blade length
|
10 ft 2 in.
|
|
Strokes per minute
|
10-12
|
|
Throat depth
|
18 in.
|
|
Worktable height
|
34-1/2 in.
|
|
Front support arm
|
24 in.
|
|
NC Back gauge
|
36 in. go to NC powered back gauge
with touch screen |
|
Blade rake angle
|
2 degree
|
|
Oil tank cap.
|
53 Gal.
|
|
Main motor
|
20 HP, 220V/70A, 3 Phase
440V/35A, 3 Phase (OPTIONAL) |
|
NC Back Gauge
|
1 HP, 220V, 3 Phase
|
|
Machine weight
|
13,850 lbs
|
|
Machine dimensions
|
181 x 117 x 65 in.
(with back gauge and squaring arm) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
