- Description
- ISO 9001 certified
- Taiwan machines
- 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Dual voltage 220V/440V
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Manufacturer
- Product Features
- ISO 9001 certified
- Taiwan machines
- 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display for HS-0425E, & HS-0625E & 36” for HS-0808E
- 36” NC go-to power back gauge with touch screen for HS-1025E & HS-0825E
- Quick Change Blade Gap Adjustment (BGA), with gap dials
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
- 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
36” go to NC back gauge w/ touch screen is for model HS-0825E and HS-1025E - 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with dials
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine - $CALL

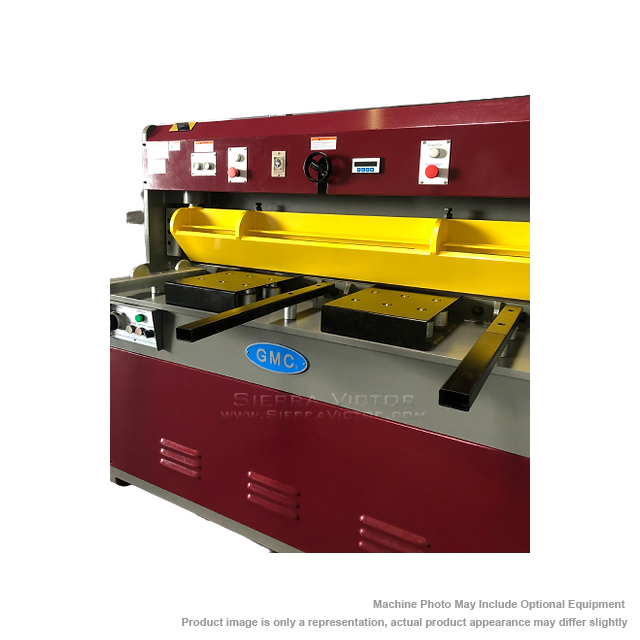

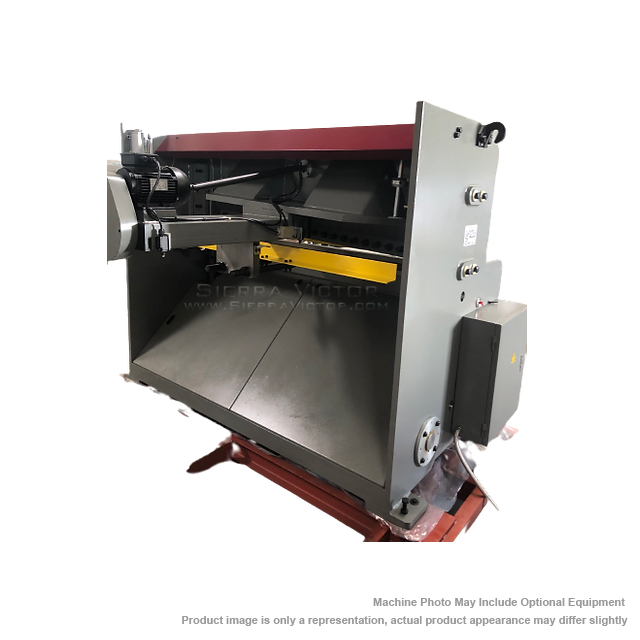

GMC 6 ft x 1/4 inch Hydraulic Shear with 24 inch Power Back Gauge HS-0625E
EQUIPPED WITH:
ITEM: 6 ft x 1/4 inch Hydraulic Shear with 24 inch Power Back Gauge
MANUFACTURER: GMC
MODEL: HS-0625E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
1/4"
Stainless Steel Capacity:
3/16"
GMC Hydraulic Shear with 24” Power Back Gauge: HS-0625E
EQUIPPED WITH:
MODEL |
HS-0625E |
|
Cutting capacity: Mild steel
|
6' x 1/4" |
| Cutting capacity: Stainless steel |
6' x 10 ga. |
|
Blade length |
6' 6" |
|
Strokes per minute |
10-17 |
|
Throat depth |
18" |
|
Worktable height |
34-1/2" |
|
Front support arm |
24" |
|
Back gauge for E model |
36” power B.G |
|
Blade rake angle |
2 degree |
Oil tank cap. |
2117L = 31 Gal |
Main motor |
15 HP, 220/440V, 3-phase |
Power B.G. motor |
1 HP |
|
Machine weight |
7,650 lbs |
|
Machine dimensions |
102” x 89” x 63” |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
