- Description
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Work light
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- EQUIPPED WITH:

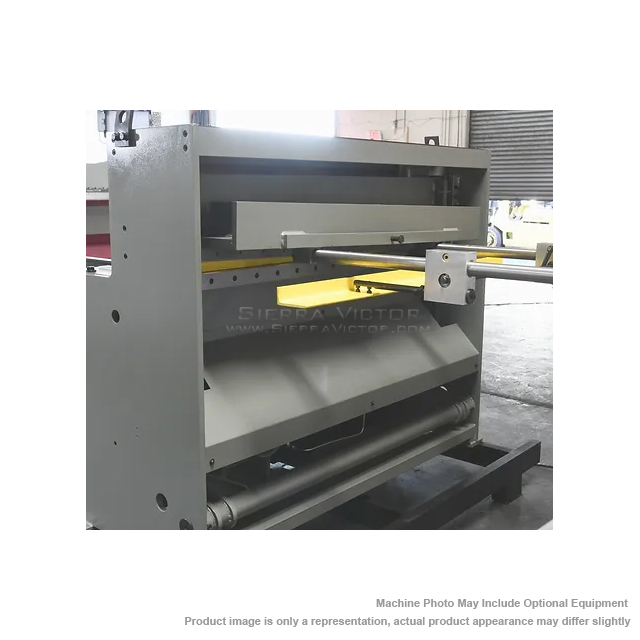

- 25” manual back gauge with inch/metric dual scale & one side operated hand wheel

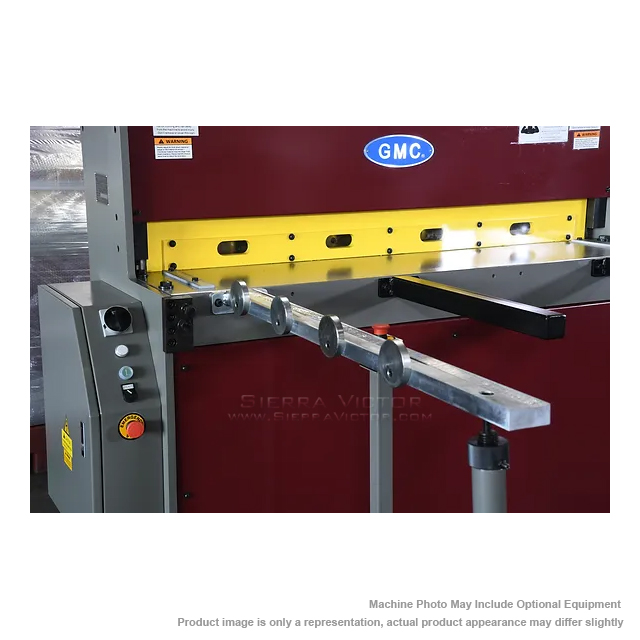

- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Work light
- Spring independent hold-downs
- full length finger guard
- Removable safety foot pedal control
- Tool box
- One set blades
- Manufacturer
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine
- Video

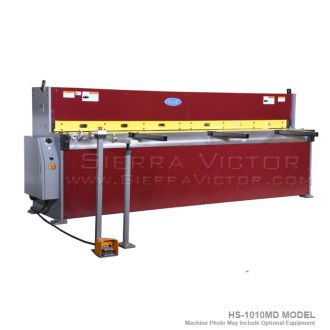

GMC Deluxe Hydraulic Shear: HS-0610MD
Manufacturer:
GMC Machine Tools
|
Cutting capacity: mild steel
|
6' x 10 Ga
|
|
Cutting capacity: stainless steel
|
6' x 14 Ga
|
|
Blade length
|
6' 6"
|
|
Strokes per minute adjustable
|
16-20
|
|
Worktable height
|
30-1/2"
|
|
Throat Depth
|
16"
|
|
Front support arm length
|
24"
|
|
Manual Back Gauge
|
25" |
|
Top Blade Rake Angle
|
1.5 degree
|
|
Hydraulic Oil Tank Capacity
|
20 Gal.
|
|
Main motor
|
5-1/2 HP, 220/440V, 3 PH
|
|
Machine Dimensions
|
98" x 35" x 52"
|
|
Net Weight
|
4,150 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
