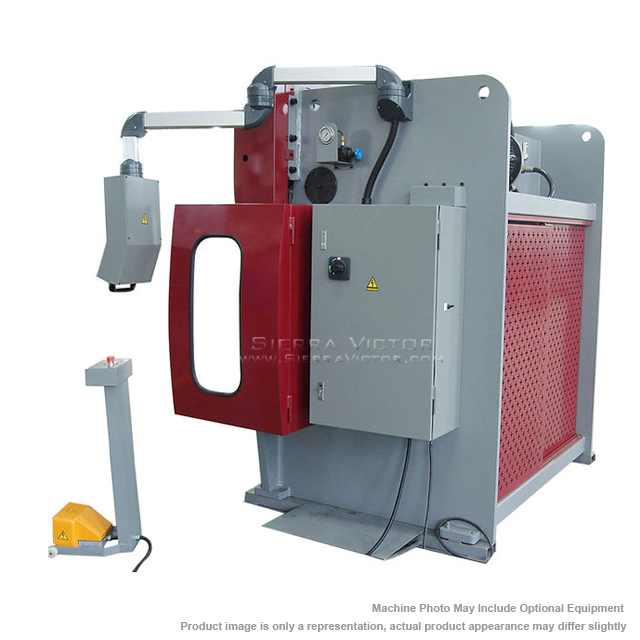

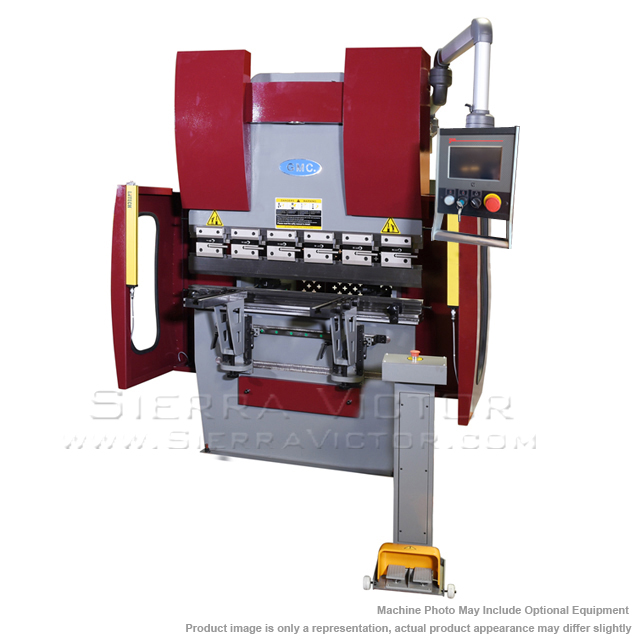

GMC 45 Ton x 4 ft CNC Press Brake – Small Hydraulic Press Brake HPB-4504CNC

• Our GMC HPB-4504 is a 45 ton press brake with two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
• ISO 9001 certified
• Meet OSHA and CE safety standard

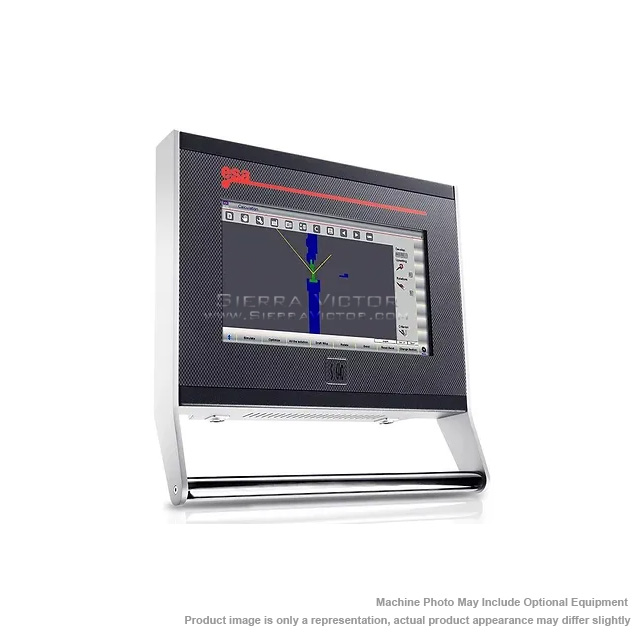

• ESA (Italy) Model 625, 2 Axis CNC Controller
• Die library, offline programming, stores thousands of programs
• Programmable Angle/ Angle Correct
• Germany Rexroth hydraulic system
• Yaskawa Servo motor and Drives
• Schneider electrical components
• Hydraulic crowning
• All steel construction for maximum rigidity
• Hydraulic logic system centrally located and quiet
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• One year industrial warranty for parts
• DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported

STANDARD EQUIPMENT:

• ESA (Italy) Model 625, 2 Axis CNC Controller
• (2) 24” front support arms, Quick Release for easy positioning

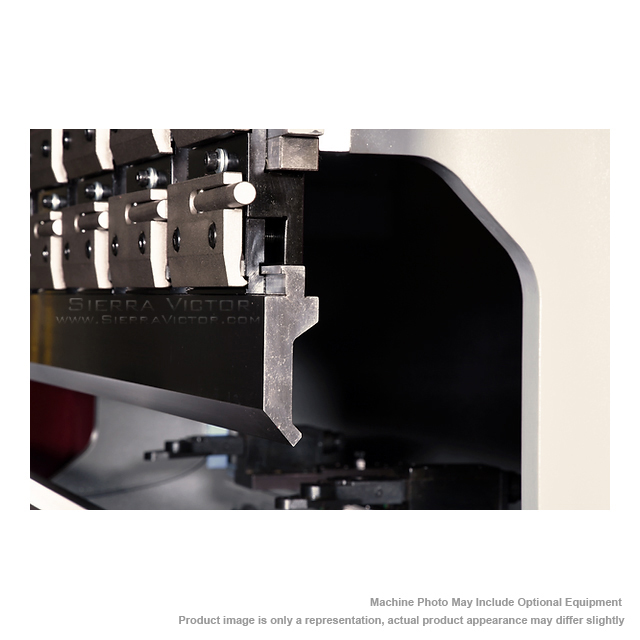

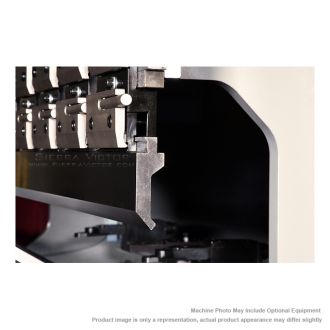

• Quick release segmented (American Style Tooling) punch holder
• Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

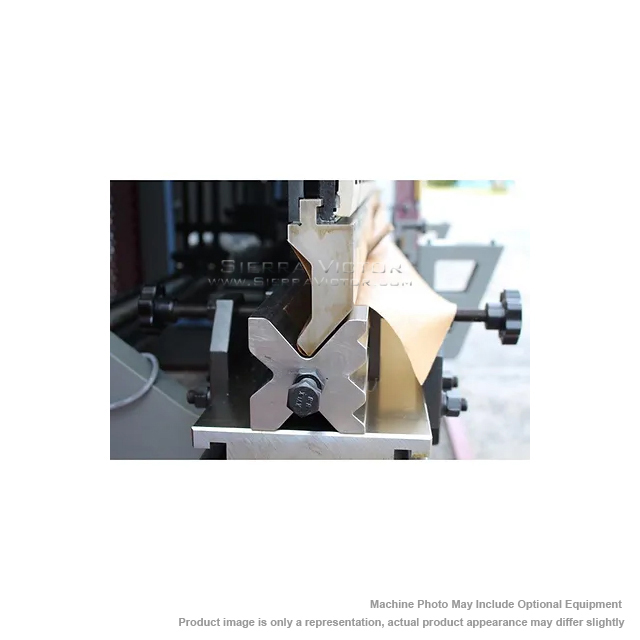

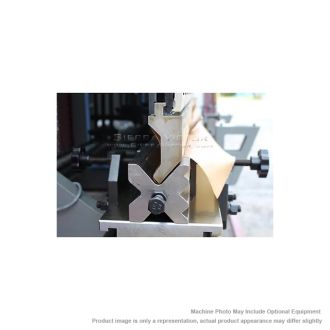

• Full Length Vee Die with 6 assorted sizes HRC 50
• Lntech Light Curtain System
• Side and Back Safety Fence
• Movable Foot Pedal with Estop meet OSHA safety standard
