- Description
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment: HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

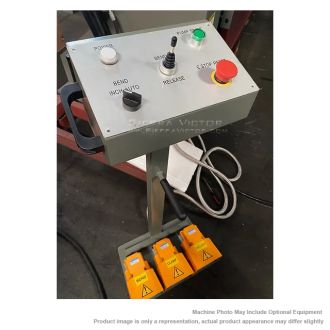

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts

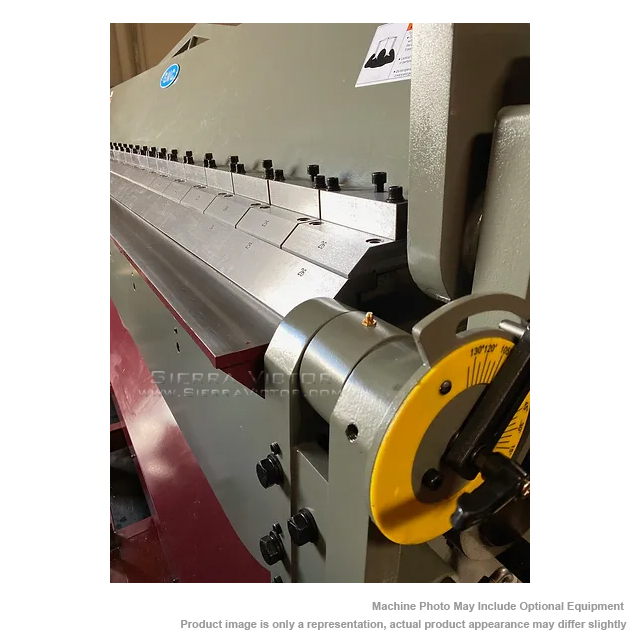

- Assorted fingers
- 26” manual back gauge with one side handwheel operation

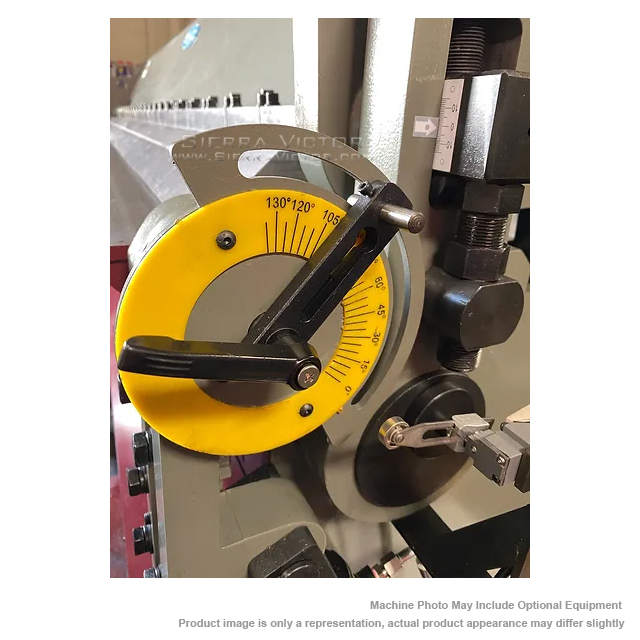

- Angle set up dial
- Hydraulic clamping system

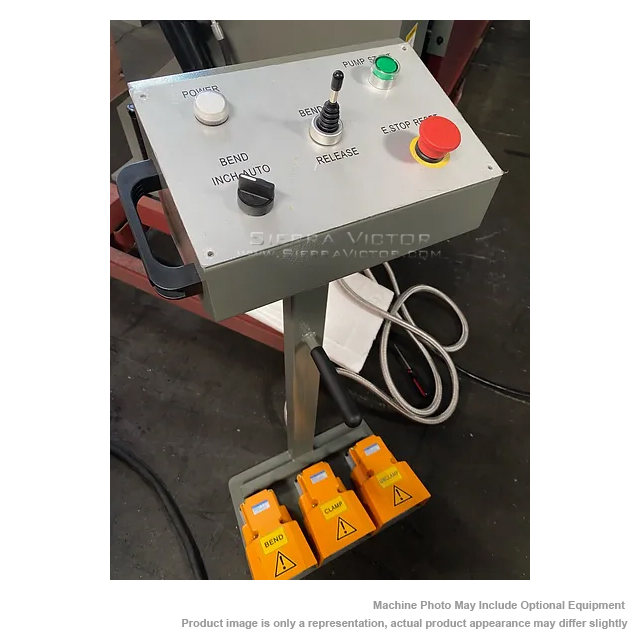

- Foot pedal control for hydraulic clamping & auto mode
- Manufacturer
- Specifications
- Options/Accessories
- One-piece straight finger instead of assorted fingers , extra
- Safety fence for enclosure of the front side of the machine
- Safety light curtain
- Video
GMC 12 ft x 14 ga. Heavy Duty Hydraulic Box & Pan Brake HBB-1214
STANDARD EQUIPMENT:
ITEM: 12' x 14 ga Hydraulic Box & Pan Brake
MANUFACTURER: GMC
MODEL: HBB-1214
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
12 ft (144 in.+)
Mild Steel Capacity:
14 ga
|
Max. Bending Length
|
12'
|
|
Capacity Mild Steel
|
14 Ga.
|
|
Capacity Stainless Steel
|
16 Ga.
|
|
Bend Angle
|
135°
|
|
Max Box Depth
|
6"
|
|
Large Beam Opening
|
3"
|
|
Oil Tank Gal.
|
50
|
|
Main Motor
|
10 HP, 3-phase
|
|
Overall Dimensions
|
180" x 46" x 69"
|
|
Mach Weight
|
8,950 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
