- Description
- Flagler 20 Gauge High-Speed Button Pittsbrugh equipped with built-in 5/16" Pittsburgh Lock Roll 3 HP 230/3/60/1800 RPM motor and manual (100 fpm) #16-000
- This 6-station machine forms a 5/16" Pittsburgh running at 100 feet per minute for increased production.
- Manufactured in Michigan

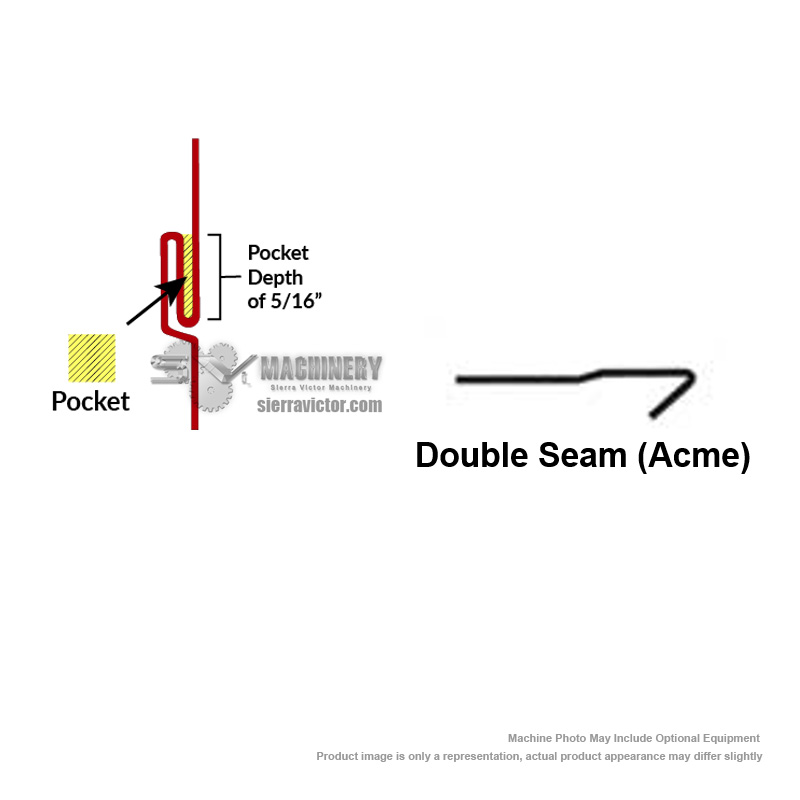

- Built-in 5/16" Pittsburgh Lock Roll
- Double Seam Acme Drive Lock Roll Set - Included Option
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

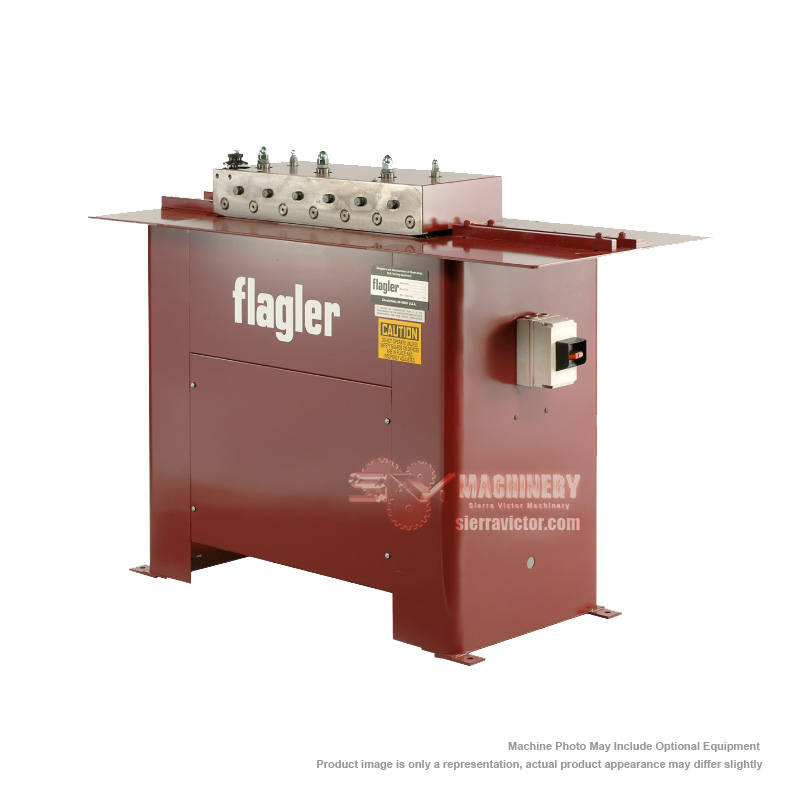

FLAGLER 20 ga. High Speed 6-Station Pittsburgh Machine
EQUIPPED WITH:
ITEM: 20 ga. High Speed 6-Station Pittsburgh Machine
MANUFACTURER: FLAGLER
MODEL: 16-000
Manufacturer:
Flagler
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
20 ga
Maximum Capacity, Mild Steel |
20 ga |
Depth of Pocket |
5/16 in. |
Speed (Approx) |
100 fpm |
Allowance for Lock |
1 in. to 1-5/16 in. |
Sheet Edge used to form profile |
1 in. |
Number of Stations |
5 |
Drive |
Double Matched V-Belt |
Base |
Arc Welded Steel Heavy Top Plate |
Work Height (Feed Table) |
32-5/8 in. |
Motor |
3HP, 230/3/60, 1800 RPM |
Dimensions |
36 L x 16-1/2 W x 37 H in. |
Shipping Weight (approx) |
450 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
ITEM |
PRICE
|
1/4 - 3/8 in. Right Angle Flange Rolls (20-26 Ga.) |
$1,450.00 |
1-1/8 in. Drive Cleat Rolls (20-26 Ga.) |
$1,450.00 |
Short Parts Feeder for Auxiliary Rolls |
$1,300.00 |
