<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>C3015B</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Power</div></td>
<td width="257" class="TableText"><div align="center">1500W-6000W</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Processing format (L*W)</div></td>
<td class="TableText"><div align="center">3048mm*1524mm</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Max. Linkage Speed</div></td>
<td class="TableText"><div align="center">100m/min</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cutting Capacity of Round Tube</div></td>
<td class="TableText"><div align="center">Φ20-Φ240mm</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cutting Capacity of Square Tube</div></td>
<td class="TableText"><div align="center">□20x20 - □240x240mm</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Rectangular tube cutting range</div></td>
<td class="TableText"><div align="center">20mm ≤ Side lengt h≤ 240mm</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Angle steel cutting range</div></td>
<td class="TableText"><div align="center">2#-18# (20x20mm-180x180mm)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Channel steel cutting range</div></td>
<td class="TableText"><div align="center">5#-20# (50x37mm-200x75mm)</div></td>
</tr>
</tbody>
</table>
<p><strong>For more details, feel free to reach out to us!</strong><br></p>
<p>Specifications are subject to change without notice.</p>
<p>NOTE: Data is provided by the manufacturer.</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts</p>
<ul>

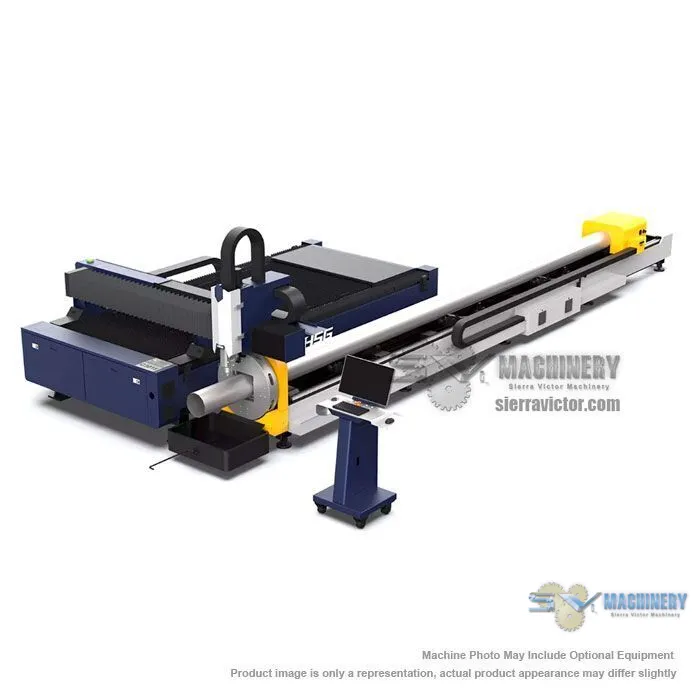

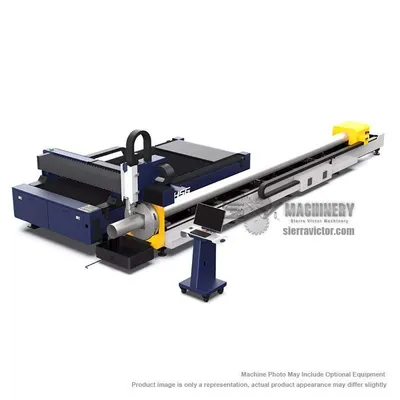

<li><strong>COMPACT COMBO TABLE/TUBE CUTTING LASER</strong></li>
<li><strong>Capable of Cutting Both Sheet And Tubes:</strong> Integrated design, one machine integrates the cutting function of tubes and sheets, saving equipment procurement costs and equipment footprint, and making space layout more flexible.</li>

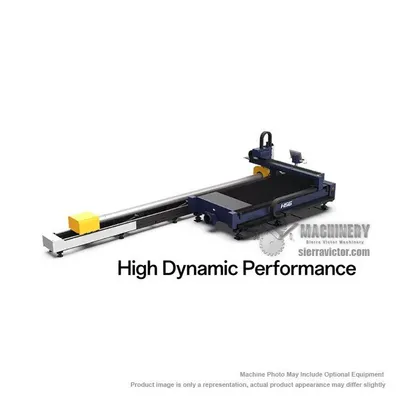

<li><strong>High Dynamic Performance: </strong>The maximum linkage speed can reach 100m/min, with an acceleration of 1.5G, improving processing efficiency and significantly reducing processing time.</li>

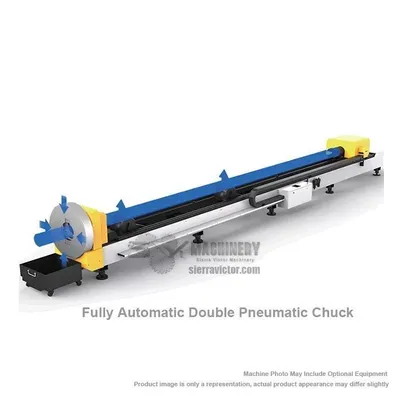

<li><strong>Fully Automatic Double Pneumatic Chuck:</strong> It can cut circular tubes with a diameter of 20-240mm, and it is also suitable for cutting square tubes, angle steels, and channel steels. The maximum weight of a single tube is 300kg, with a wide cutting range and strong cutting ability, easily meeting diverse processing needs.</li>

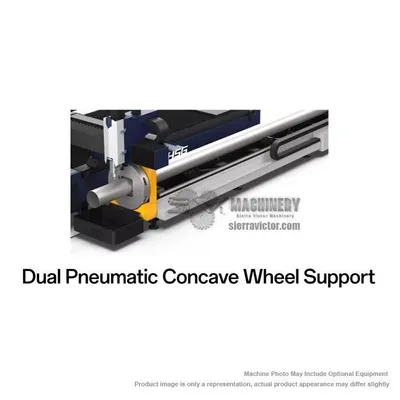

<li><strong>Dual Pneumatic Concave Wheel Support:</strong> Equipped with 2 pneumatic concave wheel support frames, it provides stable support during the tube cutting process, avoiding tube sagging or deformation and improving machining accuracy.</li>
<li><strong>Upgraded Matrix Machine Bed with Rigidity:</strong> The machine bed is made of welded carbon steel, which undergoes high-temperature annealing and natural aging to eliminate welding stress, improve the strength and deformation resistance of the structure.</li>

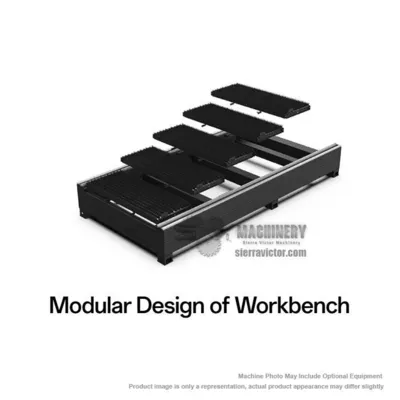

<li><strong>Modular Design of Workbench:</strong> The workbench adopts a modular design, which is flexible and convenient to replace; The staggered layout of the blade ensures even force distribution and prolongs the service life of the workbench. </li>

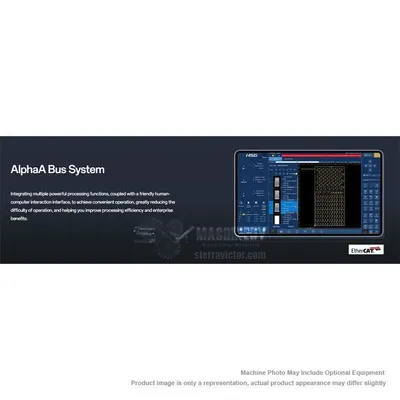

<li><strong>AlphaA Bus System: </strong>Integrating multiple powerful processing functions, coupled with a friendly human-computer interaction interface, to achieve convenient operation, greatly reducing the difficulty of operation, and helping you improve processing efficiency and enterprise benefits <br>
</li>
</ul>
