<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td colspan="2" bgcolor="#333333" class="TableText1"><div align="center" class="Title_white"><strong>MODEL</strong></div></td>
<td width="151" bgcolor="#333333" class="TableText1"><div align="center"><strong class="Title_white">EPS-0412M-1PH</strong></div></td>
</tr>
<tr>
<td width="82" rowspan="4" bgcolor="#cccccc" class="TableText1"><div align="center">Cutting Capacity</div></td>
<td bgcolor="#cccccc" class="TableText1"><div align="center">Mild Steel - HRS <br>
(tensile 60,000 PSI)</div></td>
<td class="TableText1"><div align="center">4 ft x 12 Ga.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1"><div align="center">Stainless Steel <br>
(tensile 85,000 PSI)</div></td>
<td class="TableText1"><div align="center">4 ft x 16 Ga.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1"><div align="center">Soft Aluminum<br>
(tensile 28,000 PSI)</div></td>
<td class="TableText1"><div align="center">4 ft x 8 Ga.</div></td>
</tr>
<tr>
<td width="125" bgcolor="#cccccc" class="TableText1"><div align="center">Min. Thickness</div></td>
<td class="TableText1"><div align="center">26 Ga.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Blade Length</div></td>
<td class="TableText1"><div align="center">52 in.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Strokes per minute</div></td>
<td class="TableText1"><div align="center">35</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Worktable height</div></td>
<td class="TableText1"><div align="center">32 in.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Front support arm</div></td>
<td class="TableText1"><div align="center">36 in.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Back gauge</div></td>
<td class="TableText1"><div align="center">26 in. Manual back gauge</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Blade rake angle</div></td>
<td class="TableText1"><div align="center">2 degree</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Main Motor</div></td>
<td class="TableText1"><div align="center"> 4HP, Single Phase, 15 AMP <br>
Prewired: 220VAC </div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Machine Weight</div></td>
<td class="TableText1"><div align="center">2,120 lbs.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Shipping Weight</div></td>
<td class="TableText1"><div align="center">2,133 lbs.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Machine Dimensions</div></td>
<td class="TableText1"><div align="center">72 x 42 x 67 in.</div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1"><div align="center">Shipping Dimensions</div></td>
<td class="TableText1"><div align="center">80 x 35 x 61 in.</div></td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<p></p>
<ul>

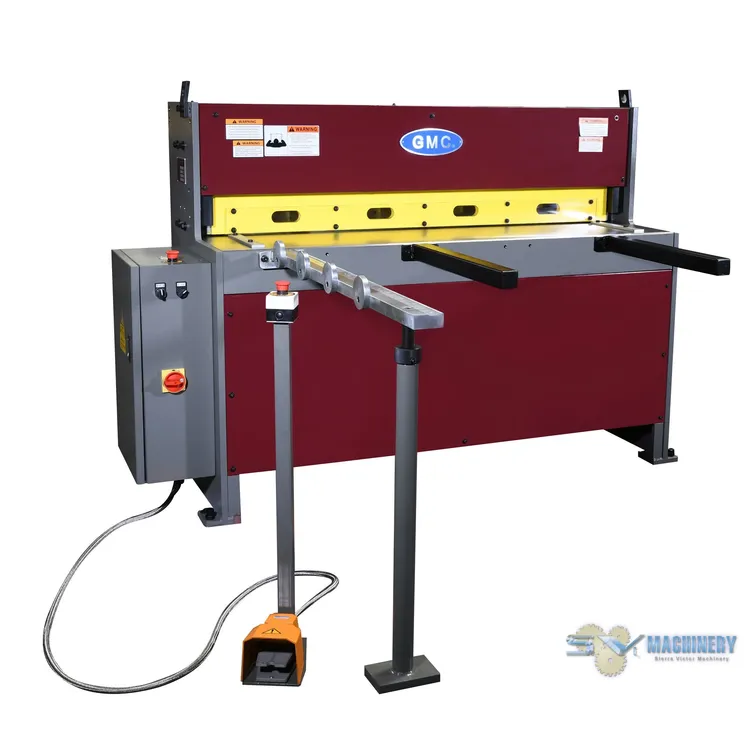

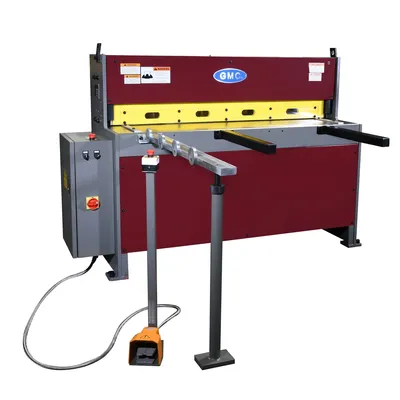

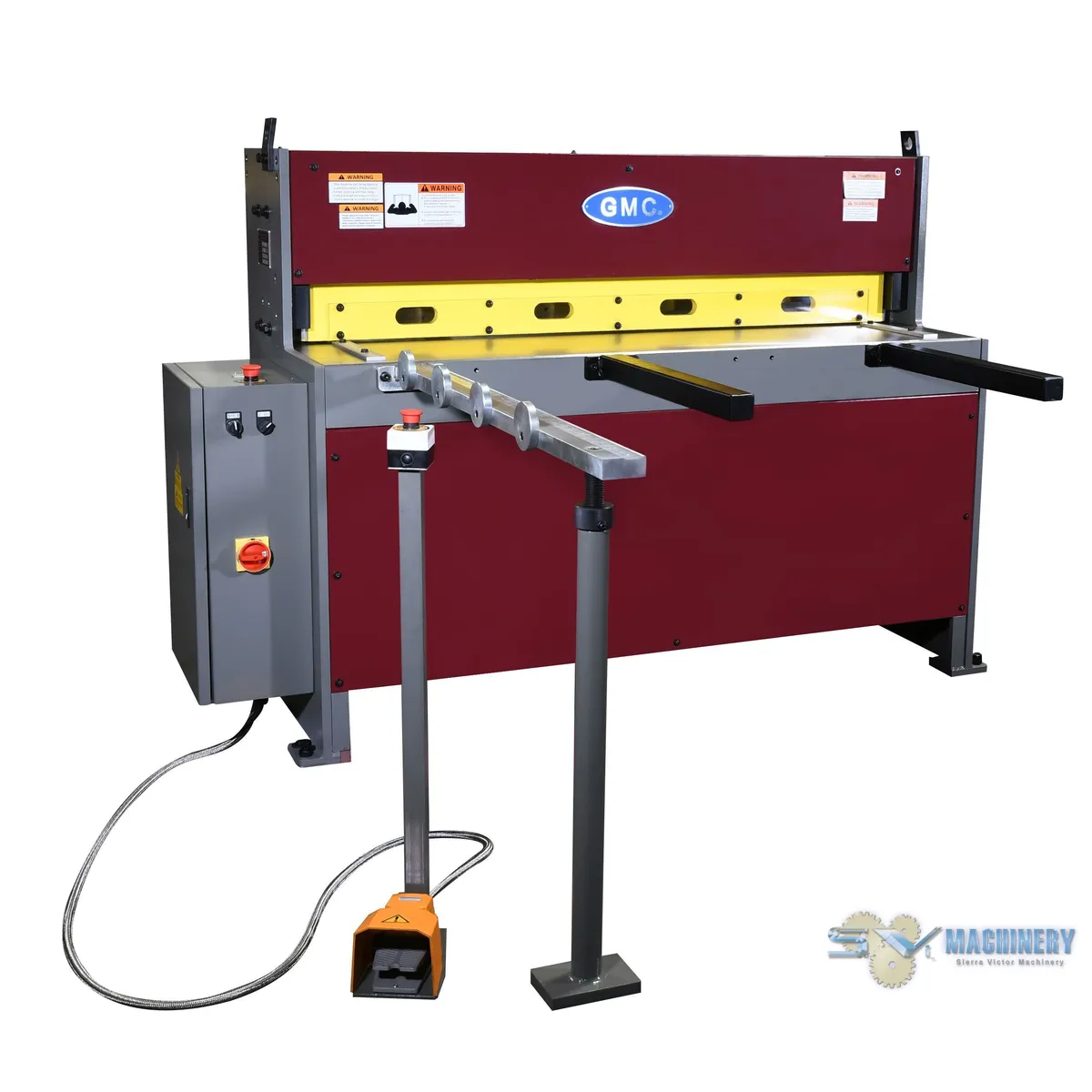

<li>Shop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.</li>
<li>ISO 9001 certified</li>
<li>American design and Taiwan quality machine</li>
<li>HD all steel construction for maximum rigidity</li>
<li>Precision driven gearbox</li>
<li>Full length 30 strokes per minute</li>
<li>60" long squaring arm with inch / mm scale</li>
<li>spring hold-downs </li>
<li>high grade carbon/chrome alloy steel blades and hardened to 62 hrc,</li>
<li>2-edge indexable upper blade and 4-edge indexable bottom blade </li>

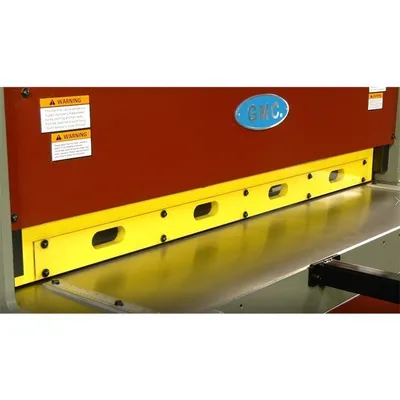

<li>Full length with full view finger guard</li>
<li>Front supports and (2) side gauges</li>

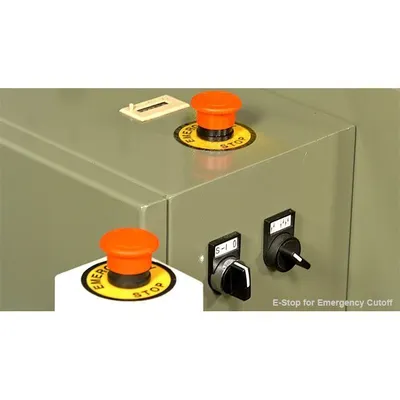

<li>Safety type foot pedal control </li>

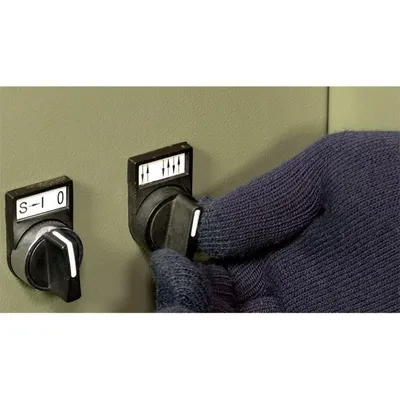

<li>Jog, single continuous auto operation modes</li>
<li>One year warranty for parts</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>

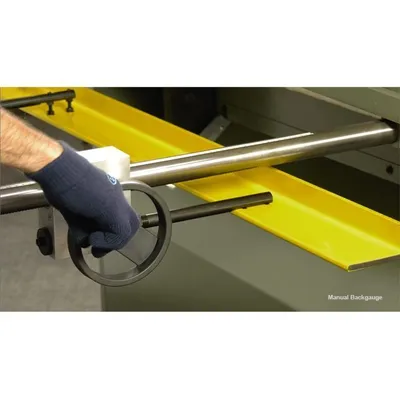

<li>26" manual back gauge with one side handwheel</li>
<li>60" long squaring arm with inch / mm scale, mounted on right side of the table</li>

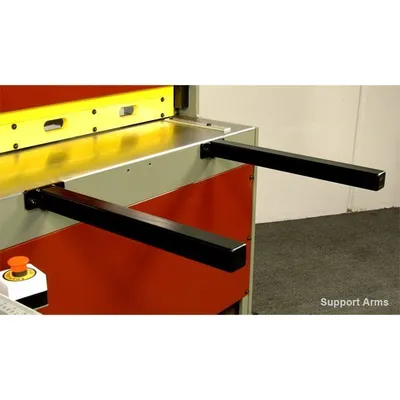

<li>2 each 24" front support arms</li>
<li>full length finger guard</li>
<li>Removable safety foot pedal control</li>
<li>One set of upper & lower blades</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine:<strong> $CALL</strong></li>
</ul>
