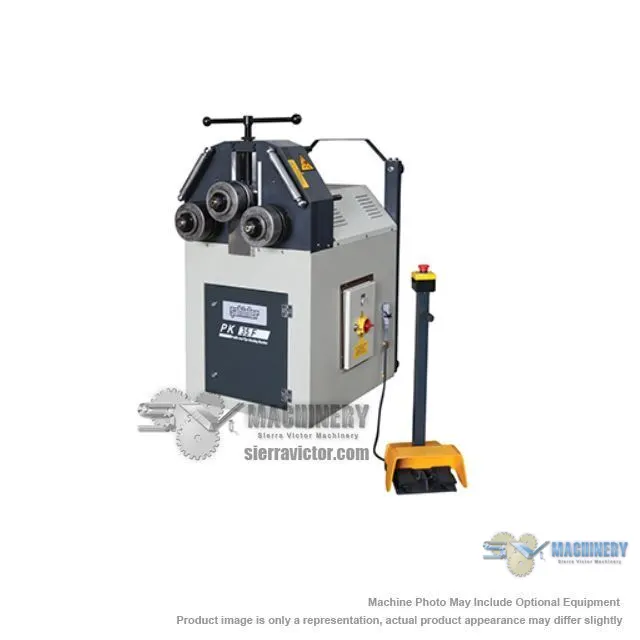

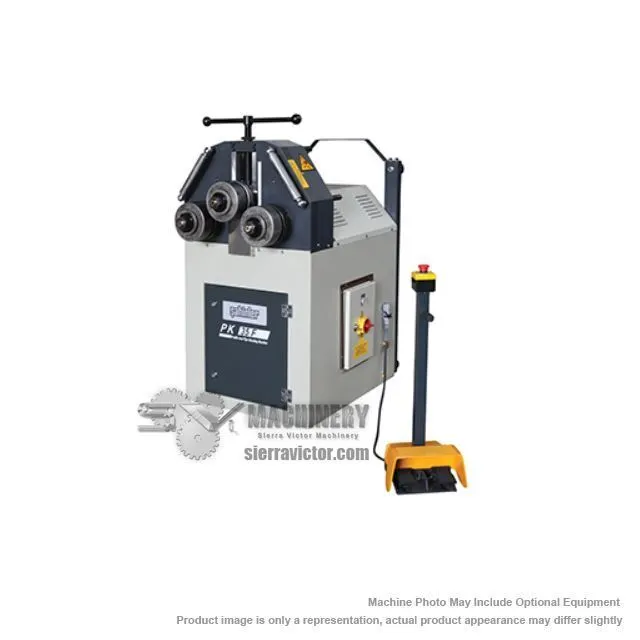

COLE-TUVE PK-35-3ph 2 x 2 x 1/4 in. Angle and Shape Bending Roll | 2-Speed, 3-ph, 220/440v

COLE-TUVE PK-35-3ph 2 x 2 x 1/4 in. Angle and Shape Bending Roll | 2-Speed, 3-ph, 220/440v

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
COLE TUVE
Model:
PK-35
Condition:
Build To Order
Stock #:
PK-35-3ph
Status:
For Sale

Description

COLE-TUVE PK-35-3ph Angle and Shape Bending Roll has a 2 inch capacity. Two Rolls are Powered. Rolls are Hardened. Horizontal and Vertical Working Positions.

Angle Roll TypeManualManual
Roll Diameter Ø6.1"0.2 m
Shaft Ø1.97"50.038 mm
Motor Power1-1/2 + 2 HP1-1/2 + 2 HP
Power2-Speed, 3-ph, 220v or 440v (specify)2-Speed, 3-ph, 220v or 440v (specify)
Driven Rolls22
Rolling Speed, FPM7-1/2 and 157-1/2 and 15
Roll AdjustmentManualManual
Pipe Capacity2" Schedule 40, ø40"2" Schedule 40, ø40"
Round Tube Capacity(SP) 2-3/4" x 14 ga., ø40"(SP) 2-3/4" x 14 ga., ø40"
Square Tube Capacity2" x 2" x 10 ga., ø67"2" x 2" x 10 ga., ø67"
Rectangular Tube Capacity2-3/4" x 1-3/16" x 14 ga., ø48"2-3/4" x 1-3/16" x 14 ga., ø48"
Square Bar1-3/8", ø36"1-3/8", ø36"
Round Bar(SP) 1-3/8", ø24"(SP) 1-3/8", ø24"
Flat Bar Easy Way4" x 9/16", ø18"4" x 9/16", ø18"
Flat Bar Hard Way2-3/8" x 3/8", ø20"2-3/8" x 3/8", ø20"
Angle Iron Leg-In2" x 2" x 1/4", ø40"2" x 2" x 1/4", ø40"
Angle Iron Let-Out2" x 2" x 1/4", ø32"2" x 2" x 1/4", ø32"
T-Iron Leg-In2-3/8" x 1/4", ø28"2-3/8" x 1/4", ø28"
T-Iron Leg-Out2-3/8" x 1/4", ø28"2-3/8" x 1/4", ø28"
Channel Leg-In3-1/8", ø48"3-1/8", ø48"
Channel Leg-Out3-1/8", ø40"3-1/8", ø40"
Upper Roll Dia.6.1"154.94 mm
Lower Roll Dia.6.1"154.94 mm
Dimensions30 x 40 x 56 in.30 x 40 x 56 in.
Weight880 lbs.880 lbs.

*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls
*Electronic Digital Readout (LED)
*Leg-In Guide Rolls
