<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Country of Manufacture
</div>
</td>
<td class="TableText" width="257">
<div align="center">United States
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Speed Control
</div>
</td>
<td class="TableText">
<div align="center">Inverter
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Speed Range
</div>
</td>
<td class="TableText">
<div align="center">40 to 230 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shank Hole
</div>
</td>
<td class="TableText">
<div align="center">1.25"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">2 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Mill Speed
</div>
</td>
<td class="TableText">
<div align="center">Variable rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Notching Capacity (OD)
</div>
</td>
<td class="TableText" width="257">
<div align="center">.5" - 2.5" with optional end mills
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Angle Adjustment
</div>
</td>
<td class="TableText" width="257">
<div align="center">0 – 60°
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Digital Readout
</div>
</td>
<td class="TableText">
<div align="center">Yes, for rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText" width="257">
<div align="center">115V
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L x W x H)
</div>
</td>
<td class="TableText">
<div align="center">31" x 48" x 32"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText" width="257">
<div align="center">340 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Optional Tooling
</div>
</td>
<td class="TableText">
<div align="center">.5" to 2.5" end mills are available
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Special Notes
</div>
</td>
<td class="TableText">
<div align="center">To use end mills smaller that 1.25" a spacer sleeve is included with machine.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Things to Know Before Purchase
</div>
</td>
<td class="TableText">
<div align="center">Does not come with end mill, optional rolling stand is available
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

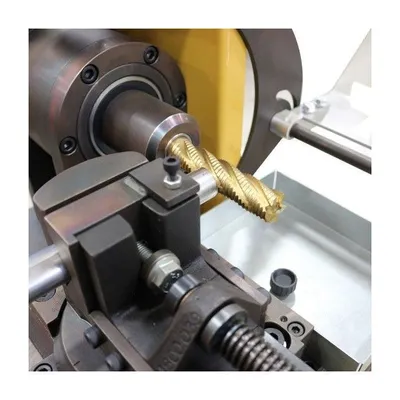

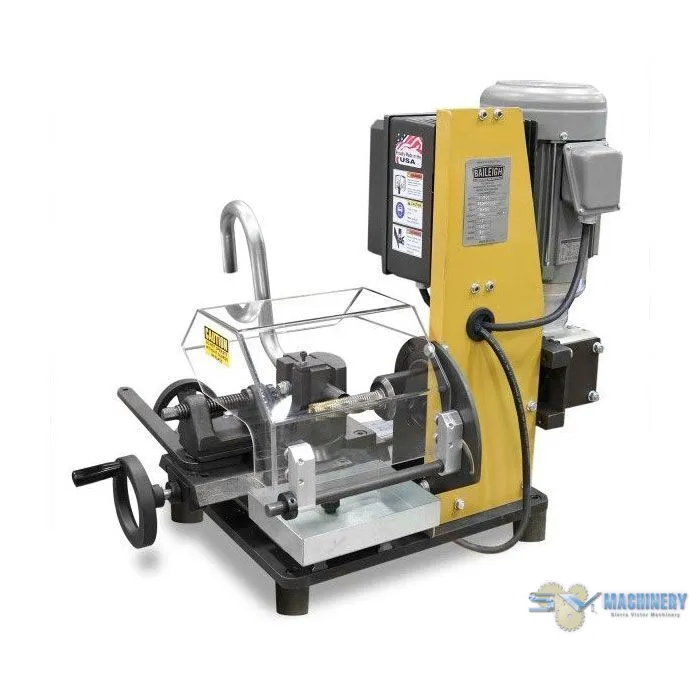

<li> The TN-700 Tube and Pipe Notcher is a great alternative to tying up your vertical mill with that pesky tube and pipe notching. </li>
<li>Made in the USA.</li>
<li><strong>2 hp motor</strong> runs on <strong>115-volt power</strong>. You can operate it almost anywhere, including in the field.</li>
<li>Notches <strong>up to 60°</strong>.</li>

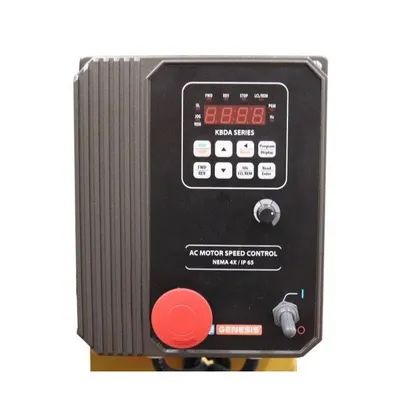

<li>Inverter driven variable speeds allow for the optimum <strong>milling speed </strong>that balances cutting power with long machine life and low wear and tear.</li>
<li>Digital readout for RPM, included</li>

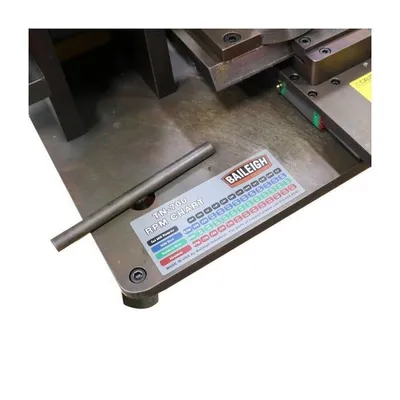

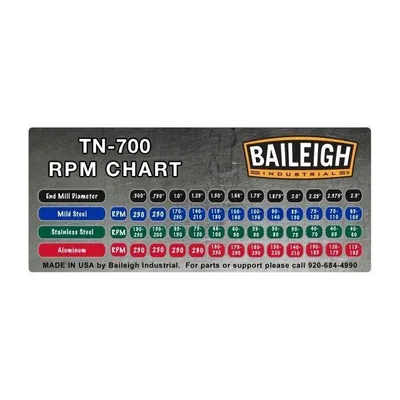

<li>Included speed chart helps dial the perfect speed for your cut.</li>

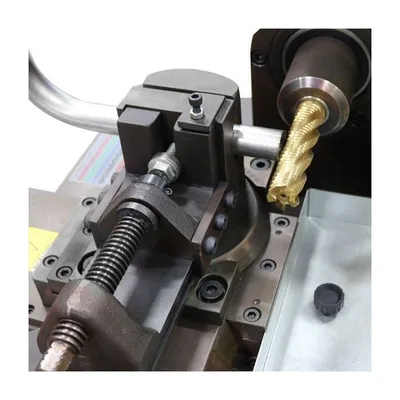

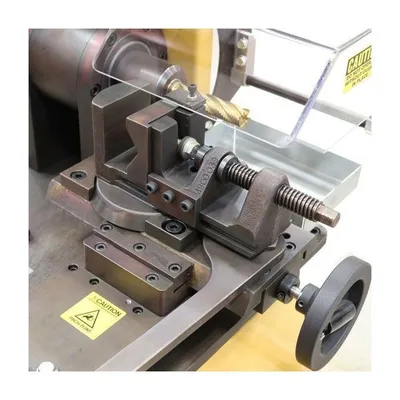

<li>Vise adjusts in just about every way possible, featuring <strong>X- and Y-axis control</strong> to ensure a good cutting position.</li>

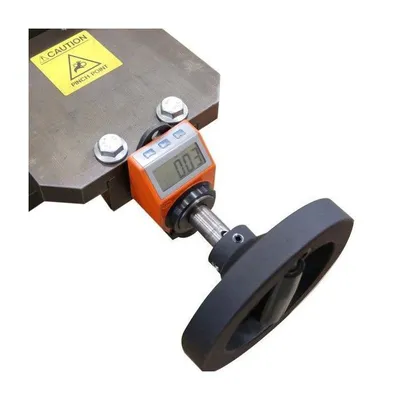

<li><strong>Degree or angle-finder</strong> makes it simple to check the angle and ensure repeatability.</li>
<li>If you want a more traditional notch, the <strong>cam lock enables you to set your degrees</strong>; just move it in either direction to angle the notch.</li>
<li>Heavy-duty <strong>cast iron framework reduces vibration</strong>, prolongs machine life, and delivers more accurate results.</li>
<li>Optional <strong>portable cart with wheels</strong>, so that when you’re not using the TN-700 you can roll it out of the way.</li>
<li>Baileigh covers this end mill tube and pipe notcher with a <strong>1-year parts warranty</strong> and <strong>lifetime technical support by phone</strong>.</li>
<li><strong>Recommended for:</strong> Structural work, racing and off-road chassis, steam pipe, and many more applications. </li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b><br></p>
<table class="TableText1" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white1" bgcolor="#333333">
<td class="optional_accessories" width="93">
<div class="Title_white_bold">
<div>
<div align="center"><span style="color: #ffffff;"><strong>PART #</strong></span>
</div>
</div>
</div>
</td>
<td width="421" bgcolor="#333333">
<div class="Title_white_bold">
<div>
<div align="center"><span style="color: #ffffff;"><strong>ITEM</strong></span>
</div>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1006266
</div>
</td>
<td>
<div align="center">PP-0215L-1" Notching End Mill, 6" Long
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1006267
</div>
</td>
<td>
<div align="center">PP-0215M-1" Notching End Mill, 4" Long
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1006278
</div>
</td>
<td>
<div align="center">PP-0280-1/2" Endmill and Adapter
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231093
</div>
</td>
<td>
<div align="center">BEM-1250P-1.660"OD/6.5"L/1.25"SH END MIL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231094
</div>
</td>
<td>
<div align="center">BEM-1250T-1.25"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231095
</div>
</td>
<td>
<div align="center">BEM-1500P-1.9"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231096
</div>
</td>
<td>
<div align="center">BEM-1500T-1.5"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231097
</div>
</td>
<td>
<div align="center">BEM-1750T-1.75"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231098
</div>
</td>
<td>
<div align="center">BEM-2000P-2.375"OD/6.5"L/1.25"SH END MIL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231099
</div>
</td>
<td>
<div align="center">BEM-2000T-2" dia. 1.25" SHANK END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231100
</div>
</td>
<td>
<div align="center">BEM-2250T-2.25"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1231101
</div>
</td>
<td>
<div align="center">BEM-2500T-2.5"OD/6.5"L/1.25"SH END MILL
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">1020426
</div>
</td>
<td>
<div align="center">M150-5A007-Cabinet Assembly for TN-700
</div>
</td>
</tr>
</tbody>
</table>
