<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="TableText">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td class="TableText" width="257">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>J-7060-4</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Stock#
</div>
</td>
<td>
<div align="center">JT9-414476-4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Cutting Capacity (W x D) (In.)
</div>
</td>
<td>
<div align="center">12 x 20
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Round at 90° & 45° (in.)
</div>
</td>
<td>
<div align="center">12
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Rectangle at 90° (in.)
</div>
</td>
<td>
<div align="center">12 x 20
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Rectangle at 45° (in.)
</div>
</td>
<td>
<div align="center">12 x 12
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Vise Swivels (Deg.)
</div>
</td>
<td>
<div align="center">45°
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Blade Size (in.)
</div>
</td>
<td>
<div align="center">1 x .035 x 156
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Blade Speeds (SFPM)
</div>
</td>
<td>
<div align="center">82 - 262
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Blade Wheel Diameter (in.)
</div>
</td>
<td>
<div align="center">17
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Bed Height (in.)
</div>
</td>
<td>
<div align="center">26-1/4
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td>
<div align="center">3HP, 460V, 3Ph
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Overall Dimensions (in.)
</div>
</td>
<td>
<div align="center">87 x 37-1/2 x 53
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Weight (lbs.)
</div>
</td>
<td>
<div align="center">1,144
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

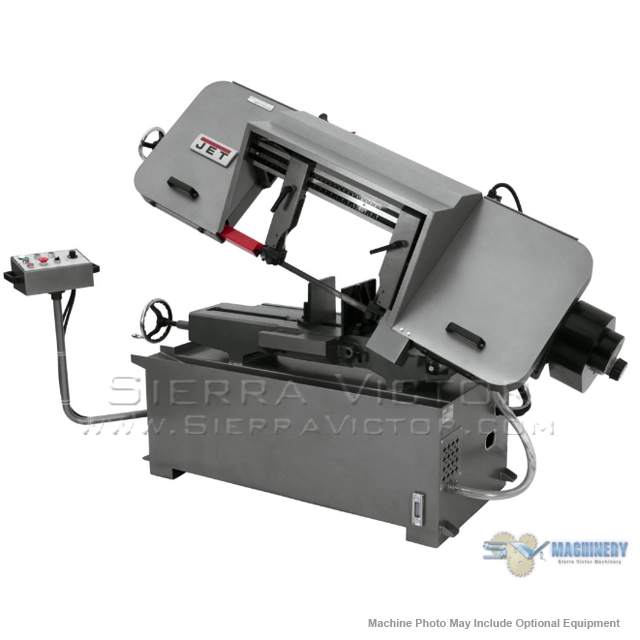

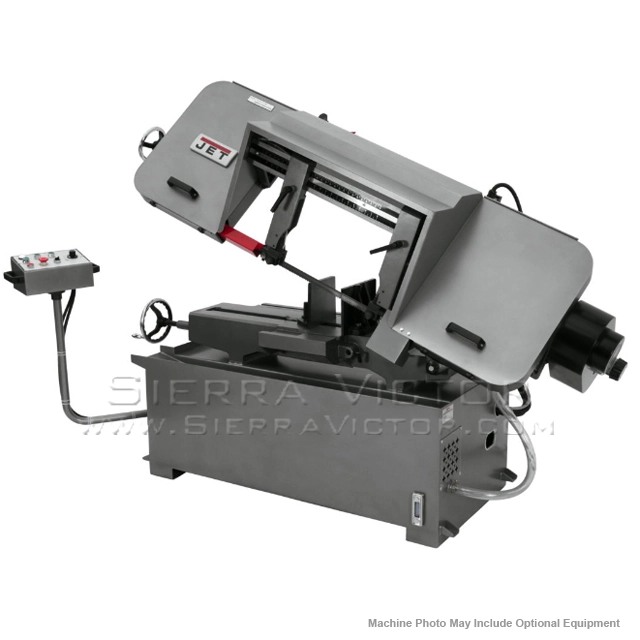

<li>This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.</li>
<li>Swing away control panel houses major saw controls</li>
<li>Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades</li>
<li>Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder</li>
<li>Saw head raises hydraulically after each cut</li>
<li>Variable speed drive system allows the operator to easily fine tune the blade speed</li>
<li>Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath</li>
<li>Cast Iron blade wheels</li>
<li>Patented 3-Jaw vise with rapid action moveable jaw for faster set up</li>
<li>Coolant system</li>
<li>Adjustable material stop</li>
<li>1" Bi-Metal blade</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="optional_accessories" width="69">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</td>
<td width="363" bgcolor="#333333">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-5674023
</div>
</td>
<td>
<div align="center">Bi-Metal Bandsaw Blade 1" x .035" x 156" x 5-8VT For J-7060/4
</div>
</td>
</tr>
</tbody>
</table>
