<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Shaft Diameter (In.)
</div>
</td>
<td width="257">
<div align="center">5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Diameter (Dia. x W) (In.)
</div>
</td>
<td>
<div align="center">8 x 1 x 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Speed (RPM)
</div>
</td>
<td>
<div align="center">900-3600
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Grits
</div>
</td>
<td>
<div align="center">36 , 60
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Dust Port Size (In.)
</div>
</td>
<td>
<div align="center">2-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor (HP)
</div>
</td>
<td>
<div align="center">1 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor Voltage (V.)
</div>
</td>
<td>
<p>115/230V, Single Phase, <br>Pre-wired 115V
</p>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions (L x W x H) (In.)
</div>
</td>
<td>
<div align="center">21.1 x 13.8 x 13.9
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Weight (Lbs.)
</div>
</td>
<td>
<div align="center">66
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

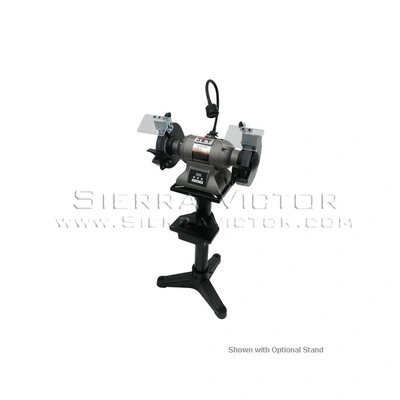

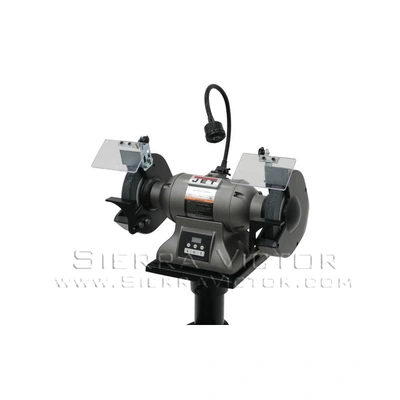

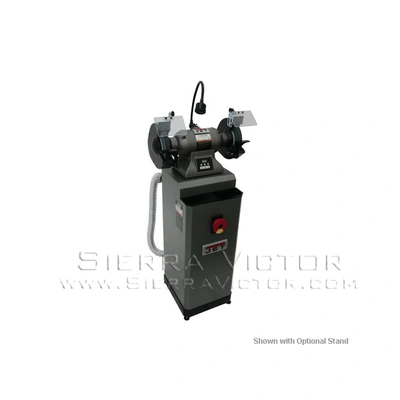

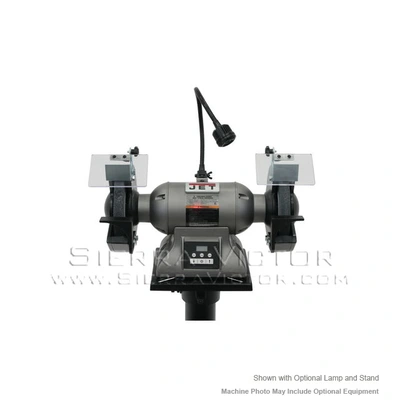

<li>The heavy-duty one-horsepower 8-inch Variable Speed Industrial Bench Grinder is engineered with a full casted body and loaded with safety innovations. The exclusive motor stop will reduce RPM speed from 3,600 to 0 in less than 20-seconds bringing the grit wheel to a complete stop.</li>
<li>Cast Iron Guards house the 36 and 60 Grit Wheels</li>
<li>Adjustable Cast Iron Tool Rests</li>
<li>Massive Cast Iron Body</li>
<li>Totally Enclosed Pre-Lubricated Ball Bearings</li>
<li>Wheel Dresser</li>
<li>CSA/CUS: Following strict guidelines and electrical requirements, these JET Industrial Grinders are CSA/CUS certified</li>
<li>Brake Resistor added for rapid wheel stoppage</li>
<li>Large Eye Safety Shields</li>
<li>Rubber Mounts Prevent Movement</li>
<li>Variable Speed provides wide range of RPM's</li>
<li>Single Dust Chute Hose</li>
<li>Two 2-1/2" Round Dust Ports with Single Outlet Collection Hose</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="optional_accessories" width="69">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</div>
</td>
<td width="363" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578172
</div>
</td>
<td>
<div align="center">IBG-Stand for IBG-8" & 10" Grinders<br>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578173
</div>
</td>
<td>
<div align="center">DBG-Stand for IBG-8", 10" & 12" Grinders<br>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#cccccc">
<div align="center">JT9-578100
</div>
</td>
<td>
<div align="center">DBG-Lamp, 3W LED Lamp for IBG-8", 10", 12" Grinders<br>
</div>
</td>
</tr>
</tbody>
</table>
