<h2 style="text-align: center;">TURNKEY PRICE SPECIAL!</h2>
<p style="text-align: center;">Only on In Stock Machines
</p>
<p style="text-align: center;">Includes 4 Axis system, Oil chiller, Dual Intensifier Pumps, Garnet Feeder, Diamond Orifice, All Software On Site Install and Training and FREE Shipping!
</p>
<h3 style="text-align: center;">ALL MACHINES NOW INCLUDE DUAL HEAD INTENSIFIER AS STANDARD EQUIPPED!
</h3>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText1" width="195" bgcolor="#CCCCCC">
<div>Working Range
</div>
</td>
<td class="TableText1" width="184">
<div>8' x 4'
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Max. Traverse speed
</div>
</td>
<td class="TableText1">
<div>195”/min
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Control accuracy:
</div>
</td>
<td class="TableText1">
<div>±0.01mm
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Cutting accuracy:
</div>
</td>
<td class="TableText1">
<div>±0.1mm
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul class="TableText">

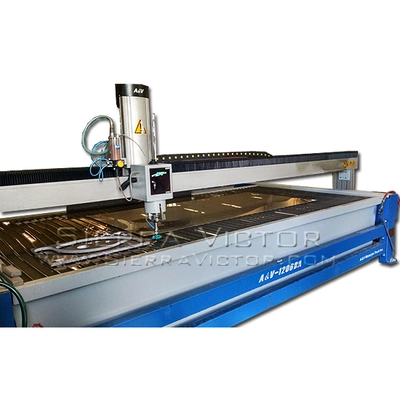

<li> The <strong>AV</strong> <strong>08x04BA Water Jet</strong> 4 axis system includes the following:
<ul>
<li>A&V Waterjet Cutting Table 8’ x 4’ </li>
<li>Dual Intensifier Pumps (THIS IS A DOUBLE INTENSIFIER ALLOWS FOR SWITCHING TO 2<sup>ND</sup>
HEAD SO THERE IS NO DOWNTIME WHILE PERFORMING ROUTINE MAINTENANCE) </li>
<li>Windows Industrial PC based controller </li>
<li>Remote Online Support </li>
<li>Automatic Garnet Feeder </li>
<li>2000 Lbs Of Garnet</li>
<li>$1,000 Worth Of Spare Parts</li>
<li>1 Year Parts Warranty (not including wear parts)</li>
<li>Control Software Manual</li>
<li>4-axis Waterjet cutting machine maintenance and troubleshooting document/videos</li>
</ul>
</li>
<li>Servo Drives and Motors are made by YASKAWA Japan (Y-axis is driven by dual motors)</li>
<li>Precision Ball Screw made by Ipiranda, Spain</li>
<li>Linear Guides and Nuts made by SKF, United States </li>
<li>Aluminum Alloy Bridge<strong></strong></li>
<li>Balanced weight distribution</li>
<li><strong>4-Axis Cutting Head:</strong> A&V four-axis cutting head is the result of our latest scientific research. The main benefit of a four-axis cutting head is to compensate taper, and to make the finished edge completely vertical through the fourth axis - a rotational axis. The four-axis cutting head actually has the structure of a five axis, which purposely has one axis under manual control b. </li>
<li>This specially engineered cutting head has performed remarkably in many cutting fields in reducing the processing cost due to increased operating efficiency. Compared with our five-axis cutting head design, it has a maximum limit of a 4 degree angle with a rotational accuracy of 0.01 degrees. </li>
<li>For taper compensation, the distance between the cutting head and the surface of the work piece must be maintained with high accuracy. The height positioning accuracy of the four-axis is 0.01mm and the cutting accuracy is 0.1mm, which can easily meet various cutting requirements.</li>
<li>In the marble matching process, waterjet cutting with a four-axis cutting head design is simply amazing. When the angle of the cutting head reaches 4 degrees, the finished edge shows tremendous improvement. As can be seen from this picture, there is no gap between the two joined surfaces. Hence, a secondary polishing procedure is no longer required. Thereby, it increases working efficiency and reduces the production cost. </li>
</ul>
