<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>TSC 100</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Slat Thickness
</div>
</td>
<td width="257" class="TableText">
<div align="center">2 mm - 3.9 mm
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Maximum Slag Thickness
</div>
</td>
<td class="TableText">
<div align="center">25 mm
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Minimum Distance Between Slats
</div>
</td>
<td class="TableText">
<div align="center">33.5 mm
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Nominal Power Consumption
</div>
</td>
<td class="TableText">
<div align="center">1700 W
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Working Speed (Max.)
</div>
</td>
<td class="TableText">
<div align="center">8 m/min.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">

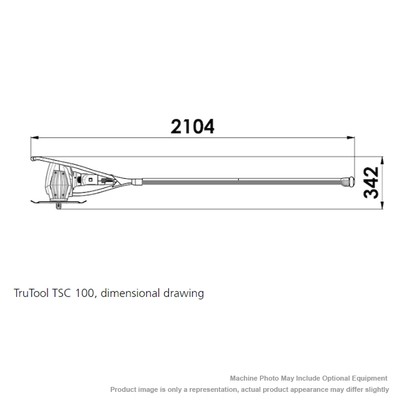

<div align="center">Length
</div>
</td>
<td class="TableText">
<div align="center">2104mm (82.8 in.)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Height
</div>
</td>
<td class="TableText">
<div align="center">342mm (13.5 in.)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Weight
</div>
</td>
<td class="TableText">
<div align="center">18 kg (39.6 lbs)
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Works on all manufacturers - traditional slats</li>

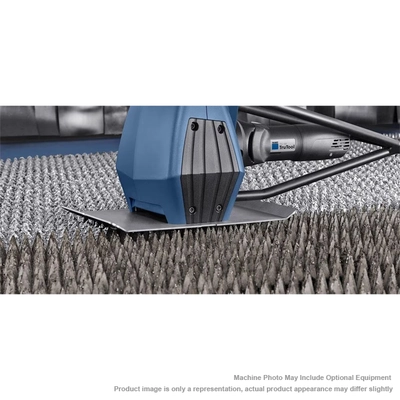

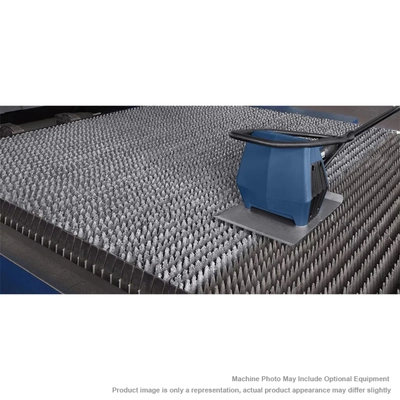

<li>With the TruTool TSC 100, you can clean your slats quickly and effortlessly. This ensures reliable, high-quality production of laser-cut components. The slats do not need to be removed for cleaning. This is practical and saves you time. It takes approximately 30 minutes to clean an entire standard size pallet of 60 x 120 in.</li>
<li>Cost reduction up to 75%:
<ul>
<li>With the TruTool TSC 100, you can clean slats multiple times before they need to be replaced.</li>
</ul>
</li>
<li>Simultaneous cleaning and production:
<ul>
<li>On laser cutting machines with pallet changers, you can clean the slats during the cutting process.</li>
</ul>
</li>
<li>Outstanding results:
<ul>
<li>TruTool TSC 100 removes the slag thoroughly, even on slats that are subject to high loads.</li>
</ul>
</li>
<li>1-man operation:
<ul>
<li>The long machine handle enables you to clean the slats effortlessly by yourself.</li>
</ul>
</li>
</ul>

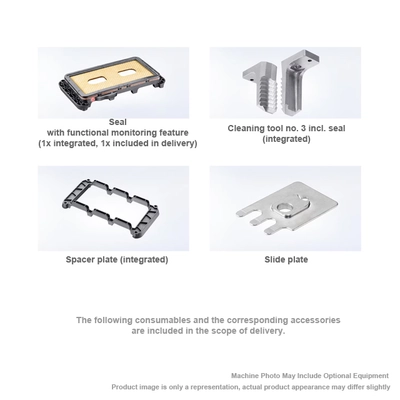

<p><strong>The following consumables and the corresponding accessories are included in the scope of delivery:
</strong>
</p>
<ul>
<li>2046587 - Seal with functional monitoring feature (1x integrated, 1x included in delivery) - 1 unit</li>
<li>1644868 - Cleaning tool no. 3 incl. seal (integrated) - 0.12 – 0.15 in - Set of 2</li>
<li>1734714 - Spacer plate (integrated) - 1 unit</li>
<li>1640682 - Allen wrench 6 mm - 1 unit</li>
<li>0369003 - Allen wrench 4 mm - 1 unit</li>
<li>1619017 - Slide plate - 1 unit</li>
<li>1634956 - Transport device - 1 unit</li>
</ul>
<p>OPTIONAL ITEMS:</p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td width="78" class="optional_accessories">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #
</strong></span>
</div>
</div>
</td>
<td width="363" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM
</strong></span>
</div>
</div>
</td>
<td width="71" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>OUR PRICE</strong></span>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1633583
</div>
</td>
<td>
<div align="center">Seal - Set of 2
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$140.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1681498
</div>
</td>
<td>
<div align="center">4 x sliding disk and 2 x seal - Set of 1
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>$1,000.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1644867
</div>
</td>
<td>
<div align="center"><strong>CLEANING TOOL NO. 3</strong> <br>
For strip thickness 0.12 - 0.15 in. incl. seal - Set of 2
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>$700.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1644868
</div>
</td>
<td>
<div align="center"><strong>CLEANING TOOL NO. 2</strong> <br>
For strip thickness 0.08 - 0.9 in. incl. seal - Set of 2
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>$700.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>2046587
</div>
</td>
<td>
<div align="center"><strong>SEAL WITH FUNCTIONAL MONITORING FEATURE</strong> - 1 Unit
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>$290.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1734714
</div>
</td>
<td>
<div align="center"><strong>SPACER PLATE</strong><br>
If the height difference between the cross slat
<br>
and slat is less than 2.4 in. - 1 Unit
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$75.00
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">1634956
</div>
</td>
<td>
<div align="center"><strong>TRANSPORT DEVICE</strong> - 1 Unit
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div>$650.00
</div>
</td>
</tr>
</tbody>
</table>
