<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">Cutting Capacity: Mild Steel
</div>
</div>
</td>
<td width="257" valign="middle" class="TableText">
<div align="center">4 ft x 10 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Cutting Capacity: Stainless Steel
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">4 ft x 14 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Cutting Capacity: Soft Aluminum
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">1/4 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Min. Thickness
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">20 ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center">Blade length
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">4 ft 4 in.
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Strokes per minute (SPM)
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">12-20
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Worktable height
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">34-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Front support arm
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">24"
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Back Gauge (German SIKO)
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">24 in. Powered B.G.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Blade Rake Angle
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">2 degree
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Oil Tank Capacity
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">17 Gal.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Main motor
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">7-1/2 HP | 3 Phase | 220V/30A <em><br>
(Optional: 440V/15A | 3 Phase)</em>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Motor for Power Back Gauge
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">3/4 HP, 220V/440V, 3 phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Machine Dimensions
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">74 x 86 x 63 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Machine Weight
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">5,150 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>ISO 9001 certified</li>
<li>Taiwan machines</li>
<li>24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display</li>
<li>Quick Change Blade Gap Adjustment (BGA), with gap dial</li>
<li>CE standard “OMERO” electric control system</li>
<li>Meet OSHA safety standard code</li>
<li>Shadow line for accurate straight cutting</li>
<li>Adjustable cutting length and stroke</li>
<li>Ball transfer plates on worktable for easy loading workpiece</li>
<li>Well balanced and sturdy all steel machine frame</li>
<li>German made Hydraulic logic system centrally located and quiet</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade</li>
<li>Full length viewable safety finger guard to protect operator from cutting hazard</li>
<li>Removable safety foot pedal, automatic blade raise up on removal of foot from pedal</li>
<li>Hydraulic, electrical overload protection</li>
<li>Compact operator control panel</li>
<li>All motors are overload protected & low voltage control system</li>
<li>Jog or continuous auto cycle cutting operation modes</li>
<li>One year industrial warranty for parts</li>

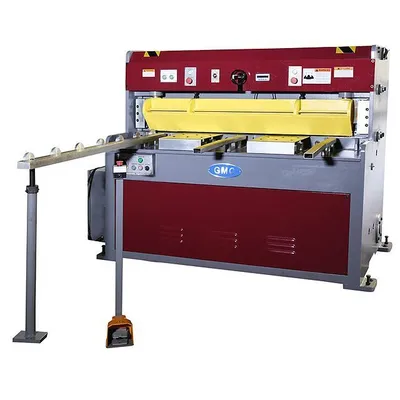

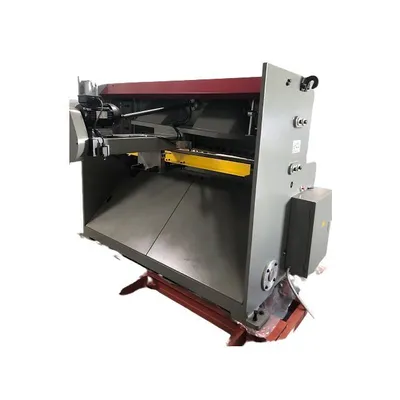

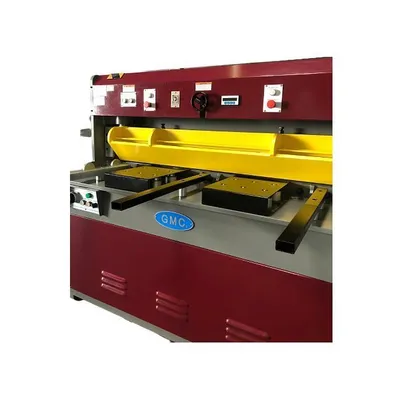

<li>Experience exceptional cutting precision and power with the HS-0410E Heavy-Duty Hydraulic Shears. With its impressive cutting capacity, advanced features, and robust construction, this machine is designed to meet your metal cutting needs with efficiency and accuracy.</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>24" German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.</li>
<li>1 each 60" squaring arm with inlaid inch/metric dual scale</li>
<li>Quick change blade gap adjustment (BGA) with gap dial</li>
<li>Shadow line for accurate straight cutting</li>
<li>Material support and drop back chuter</li>
<li>Upper and bottom blade set with 2-edge on bottom & 2-edge on upper</li>
<li>2 each 24" front support arms</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Full length viewable finger guard</li>
<li>Removable safety foot pedal</li>
<li>Tool box</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine…… $CALL</li>
</ul>
