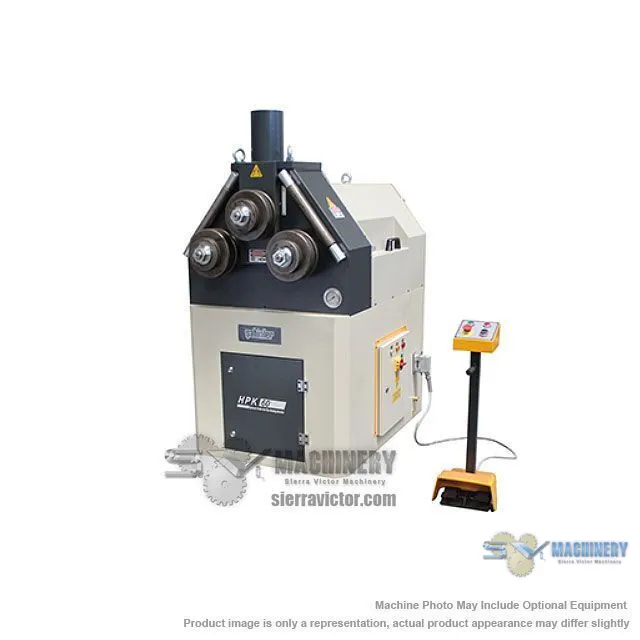

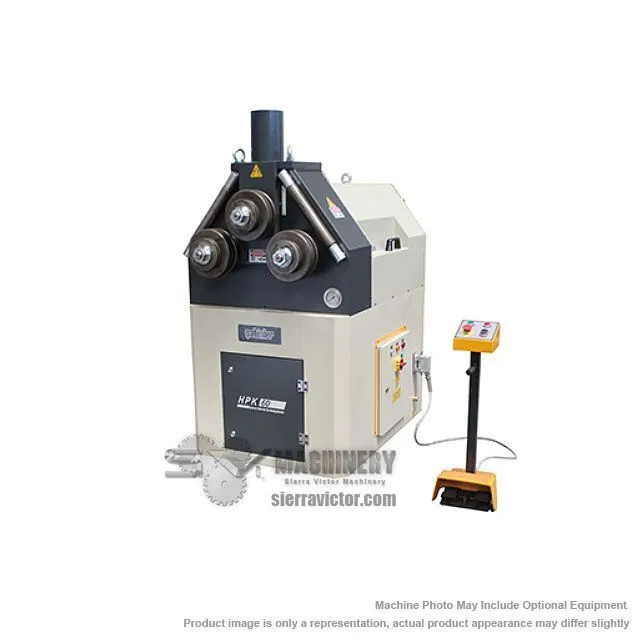

COLE-TUVE HPK-60 3 x 3 x 1/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

COLE-TUVE HPK-60 3 x 3 x 1/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
COLE TUVE
Model:
HPK-60
Condition:
Build To Order
Stock #:
HPK-60
Status:
For Sale

Description

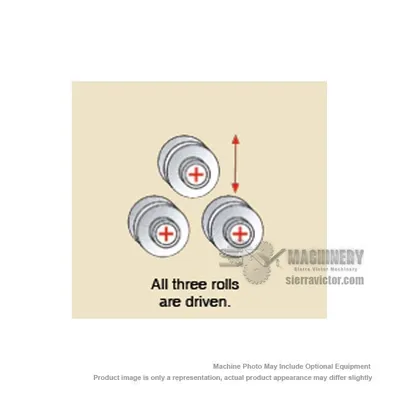

COLE-TUVE HPK-60 Hydraulic Pyramid Angle, Pipe and Shape Bending Roll has a 3" Pipe Capacity. Three rolls are powered. Rolls are hardened. Standard Rolls Handle Many Shapes. Horizontal and Vertical Working Positions.

Angle Roll TypeHydraulicHydraulic
Shaft Ø2.36"59.944 mm
Motor Power2 + 1/2 HP2 + 1/2 HP
Driven Rolls33
Rolling Speed, FPM1313
Roll AdjustmentHydraulicHydraulic
Pipe Capacity3" Sch. 40, ø63"3" Sch. 40, ø63"
Round Tube Capacity(SP) 4" x 14 ga., ø63"(SP) 4" x 14 ga., ø63"
Square Tube Capacity2-3/4" x 2-3/4" x 1/8", ø63"2-3/4" x 2-3/4" x 1/8", ø63"
Rectangular Tube Capacity3-1/8" x 1-1/2" x 1/8", ø56"3-1/8" x 1-1/2" x 1/8", ø56"
Square Bar2", ø32"2", ø32"
Round Bar(SP) 2", ø32"(SP) 2", ø32"
Flat Bar Easy Way4-3/4" x 1", ø24"4-3/4" x 1", ø24"
Flat Bar Hard Way3-1/8" x 5/8", ø48"3-1/8" x 5/8", ø48"
Angle Iron Leg-In3" x 3" x 1/4", ø48"3" x 3" x 1/4", ø48"
Angle Iron Let-Out3" x 3" x 1/4", ø40"3" x 3" x 1/4", ø40"
T-Iron Leg-In3-1/8" x 3/8", ø48"3-1/8" x 3/8", ø48"
T-Iron Leg-Out3-1/8" x 3/8", ø40"3-1/8" x 3/8", ø40"
Channel Leg-In4", ø48"4", ø48"
Channel Leg-Out4", ø32"4", ø32"
Upper Roll Dia.8.46"214.88 mm
Lower Roll Dia.8.46"214.88 mm
StylePyramidPyramid
Working PlaneHorizontal/VerticalHorizontal/Vertical
Dimensions40 x 56 x 65 in.40 x 56 x 65 in.
Weight2,090 lbs.2,090 lbs.

*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
*Electronic Digital Readout (LED)
*Pipe/Tube/Shape Bending Rolls
*Leg in Guide Rolls
*NC Control
