<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td width="257" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td width="257" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>JMD-18</strong></span>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Part #
</div>
</td>
<td bgcolor="#ffffff">
<div>JT9-350018
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Drilling Capacity (in.)
</div>
</td>
<td>
<div>1-1/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Face Mill Capacity (in)
</div>
</td>
<td>
<div>3
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>End Mill Capacity (in.)
</div>
</td>
<td>
<div>3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Swing (In.)
</div>
</td>
<td>
<div>15-7/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Max Distance Spindle to Table (In.)
</div>
</td>
<td>
<div>18
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Spindle Taper (In. x TPI)
</div>
</td>
<td>
<div>R-8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Spindle Travel (In.)
</div>
</td>
<td>
<div>5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Spindle Travel Auto (In.)
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Quill Down Feed Rates (IPR)
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Quill Diameter (In.)
</div>
</td>
<td>
<div>3
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Column Diameter (In.)
</div>
</td>
<td>
<div>4-1/2
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Number of Spindle Speeds
</div>
</td>
<td>
<div>12
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Range of Spindle Speeds (RPM)
</div>
</td>
<td>
<div>150 - 3,000
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Table Size (L x W) (In.)
</div>
</td>
<td>
<div>9-1/2 x 32-1/4
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Table Longitudinal Travel (In.)
</div>
</td>
<td>
<div>20-1/2
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Work Table Weight Capacity (Lbs.)
</div>
</td>
<td>
<div>400
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>T-Slots Number and Size (In.)
</div>
</td>
<td>
<div>4, 5/8
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>T-Slot Centers (In.)
</div>
</td>
<td>
<div>1-13/16
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Base Dimensions (In.)
</div>
</td>
<td>
<div>15-3/4 x 23-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td>
<div>2 HP, 115/230V,1Ph Prewired 115V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Overall Dimensions (in.)
</div>
</td>
<td>
<div>47 x 40 x 51
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Net Weight (lb.)
</div>
</td>
<td>
<div>660
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>

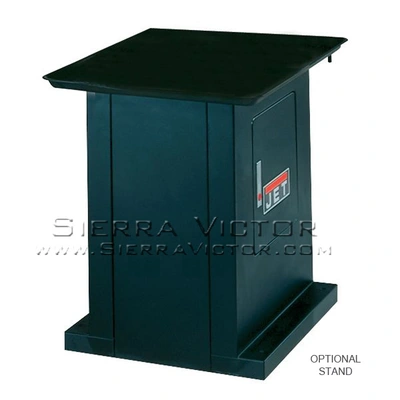

<p><strong>WARRANTY: 90 DAY </strong>– (On Stand)
</p>
<ul>

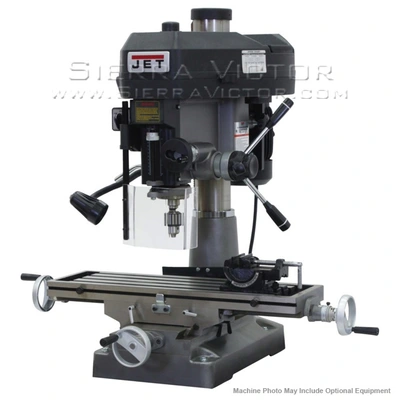

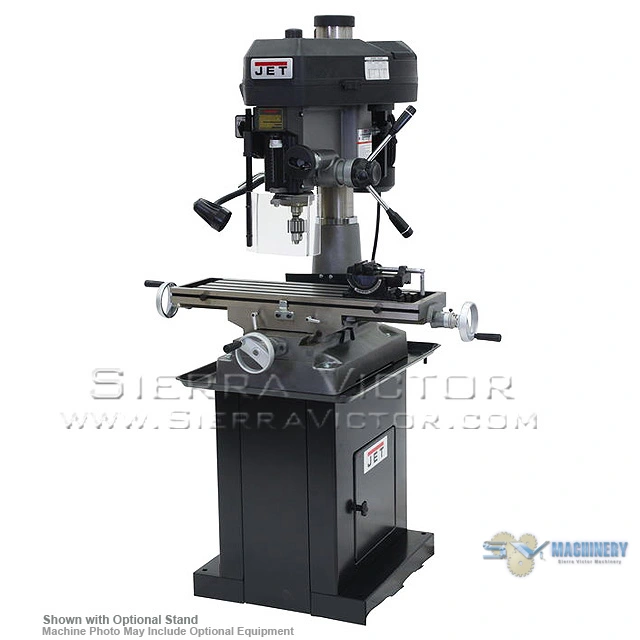

<li>Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.</li>
<li>One-piece cast iron column for added support</li>
<li>Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds</li>
<li>Base taper allows for easier clean up</li>
<li>Drill Press angle vise</li>
<li>UL Listed motor</li>
<li>Extra large worktable</li>
<li>Positive quick-stop knob and easy to read internal depth gauge</li>
<li>360° head swivel</li>
<li>Work lamp</li>
<li>Forward and Reverse Switch</li>
<li>1/2” drill chuck, chuck arbor</li>
<li>Draw bar</li>
<li>Drill Chuck Guard</li>
<li>Adjustable Carbide facemill</li>
</ul>
