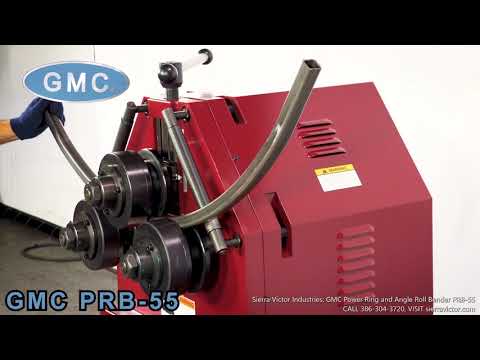

GMC PRB-55 2 in. Angle Roll Bender with Manual Positioning

GMC PRB-55 2 in. Angle Roll Bender with Manual Positioning

Have one to sell?
386-304-3720
dan@sierravictor.com
$7,950.00 USD
ConditionNew
Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
GMC MACHINE TOOLS
Model:
PRB-55
Condition:
Build To Order
Stock #:
PRB-55
Status:
For Sale

Description

GMC PRB-55 Angle Roll Bender with Manual Positioning has a heavy duty 3HP AC main motor.2 inch schedule 40 pipe is the maximum bending capacity, 2.5 inch round tube 14 Ga. and 2 inch square tubeRobust, all steel and welded framework.

Angle Roll TypeManualManual
Roll Diameter Ø7.5"0.2 m
Shaft Ø2"50.8 mm
Motor Power3 HP, 220VAC 3-Phase (Optional 440VAC)3 HP, 220VAC 3-Phase (Optional 440VAC)
Roller Speed16 RPM16 RPM
Pipe Capacity2” schedule 40 / Min. Dia.24”2” schedule 40 / Min. Dia.24”
Round Tube Capacity2-1/2” x 14 Ga. (wall) / Min. Dia. 24”2-1/2” x 14 Ga. (wall) / Min. Dia. 24”
Square Tube Capacity2” x 2” x 3/16” (wall) / Min. Dia. 24”2” x 2” x 3/16” (wall) / Min. Dia. 24”
Solid Square Tube1-3/8” x 1-3/8” / Min. Dia. 24”1-3/8” x 1-3/8” / Min. Dia. 24”
Solid Round Capacity1-3/8” / Min. Dia. 24”1-3/8” / Min. Dia. 24”
Solid Flat Bar4” x 9/16” (wall) / Min. Dia. 36”4” x 9/16” (wall) / Min. Dia. 36”
Solid Flat Bar2-3/8” x 3/8” (wall) / Min. Dia. 20”2-3/8” x 3/8” (wall) / Min. Dia. 20”
Angle Flat Bar2-3/4” x 2” x 3/8” (wall) / Min. Dia. 47”2-3/4” x 2” x 3/8” (wall) / Min. Dia. 47”
Angle Iron Leg-In2” x 3/16” (wall) / Min. Dia. 28”2” x 3/16” (wall) / Min. Dia. 28”
Angle Iron Let-Out2” x 3/16” (wall) / Min. Dia. 20”2” x 3/16” (wall) / Min. Dia. 20”
T-Iron Leg-In2” x 3/16” (wall) / Min. Dia. 28”2” x 3/16” (wall) / Min. Dia. 28”
T-Iron Leg-Out2” x 3/16” (wall) / Min. Dia. 20”2” x 3/16” (wall) / Min. Dia. 20”
Channel Leg-Out3-1/8” x 1-3/4” x 3/16” / Min. Dia. 24”3-1/8” x 1-3/4” x 3/16” / Min. Dia. 24”
Dimensions40 x 35 x 65 in.40 x 35 x 65 in.
Weight1,050 lbs.1,050 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

1-Set of Universal Forming Rolls
Foot Pedal
Left and Right Guide Rollers

Optional Items - Call for Pricing:
* Anti-twisting attachment
* One Roll Set (3 rolls) - for pipe & round tubing, any size:
* 34T-PRB55: TUBE ROLL SETS: 3/4"
* 1T-PRB55: TUBE ROLL SETS: 1"
* 114T-PRB55: TUBE ROLL SETS: 1-1/4"
* 112T-PRB55: TUBE ROLL SETS: 1-1/2"
* 2T-PRB55: TUBE ROLL SETS: 2"
* 212T-PRB55: TUBE ROLL SETS: 2-1/2"
* 34P-PRB55: PIPE ROLL SETS: 3/4"
* 1P-PRB55: PIPE ROLL SETS: 1"
* 114P-PRB55: PIPE ROLL SETS: 1-1/4"
* 112P-PRB55: PIPE ROLL SETS: 1-1/2"
* 2P-PRB55: PIPE ROLL SETS: 2"
