<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc"><div align="center">Swing Over Bed (In.)</div></td>
<td><div align="center">20</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Tool Rest Base (In.)</div></td>
<td><div align="center">17</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Distance Between Centers (In.)</div></td>
<td><div align="center">20</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Headstock Movement</div></td>
<td><div align="center">Full Length of Bed</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bore</div></td>
<td><div align="center">5/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tailstock Bore</div></td>
<td><div align="center">3/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td>
<td><div align="center">MT-2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Quill Taper</div></td>
<td><div align="center">MT-2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Ram Travel Quill Travel</div></td>
<td><div align="center">4-1/2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Threads (In. x TPI)</div></td>
<td><div align="center">1-1/4 x 8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Outboard External Threads (In. x TPI)</div></td>
<td><div align="center">1-3/16-18 UNC</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Speeds</div></td>
<td><div align="center">High 125-3200/Low 50-1200</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Speed Range</div></td>
<td><div align="center">50-3200</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Indexing Positions</div></td>
<td><div align="center">48</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Centerline of Spindle to Floor (In.)</div></td>
<td width="257"><div align="center">44 (adjustable)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Outboard Turning</div></td>
<td><div align="center">88</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Bed Construction</div></td>
<td><div align="center">Cast Iron</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Power (HP)</div></td>
<td><div align="center">2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Phase</div></td>
<td><div align="center">3</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Voltage (V.)</div></td>
<td><div align="center">230 Only</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Wiring Remarks</div></td>
<td><div align="center">VFD will accept 1 or 3 phase power</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Current (Amps)</div></td>
<td><div align="center">6.2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Recommended Circuit Size (Amps.)</div></td>
<td><div align="center">20</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

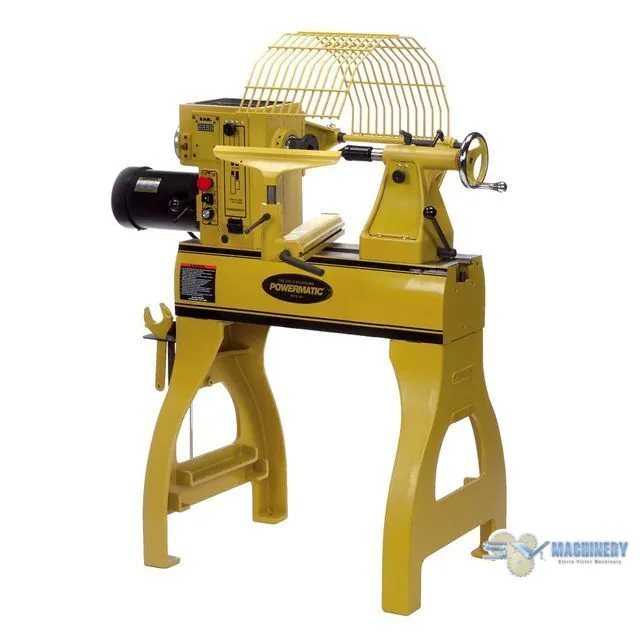

<ul><li>The features you love on the 3520B lathe are now available in a smaller footprint. The PM2020 lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.</li><li>Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments</li><li>Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features</li><li>Set of dead centers which hold a spindle for visual comparison</li><li>Redesigned tool rest geometry allows for better chisel movement along the tool rest</li><li>Laser etched quill is self-ejecting.</li><li>Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers</li><li>Attached tool caddy allows convenient access to centers, wrenches, etc.</li><li>Tailstock has internal storage for additional accessories</li><li>Chrome trimmed handwheels are ergonomic for a comfortable feel</li></ul>
<p><strong> STANDARD EQUIPMENT:</strong></p>
<ul><li>2HP TEFC Motor</li><li>Safety shield</li><li>3" face plate and face plate wrench</li><li>14" tool rest</li><li>Multiple ball-bearing live center</li><li>Brass tipped knockout rod</li></ul>
