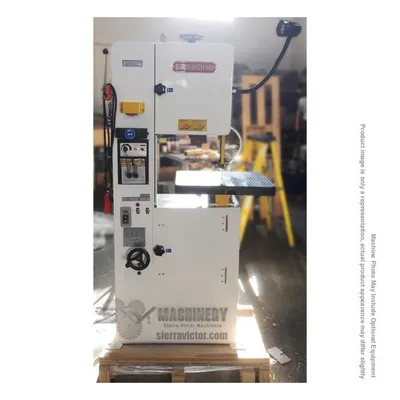

BIRMINGHAM KB-36 14 in. Vertical Metal Cutting Band Saw

BIRMINGHAM KB-36 14 in. Vertical Metal Cutting Band Saw

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Bandsaws
Manufacturer:
BIRMINGHAM
Model:
KB-36
Condition:
Build To Order
Stock #:
KB-36
Status:
For Sale

Description

The BIRMINGHAM KB-36 Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.

Throat Depth14"355.6 mm
Max. Work Height9.0625"230.19 mm
Blade Length111-13/16 in.111-13/16 in.
Blade Width3-16mm3-16mm
Saw Blade Speeds65-295 fpm (20-90m/min)65-295 fpm (20-90m/min)
Table Size19-1/2 x 15-1/4 in.19-1/2 x 15-1/4 in.
Table inclination (4 ways)15°15°
Butt Welder Capacity1/8 - 5/8 in. (2.4 KVA 3-16mm)1/8 - 5/8 in. (2.4 KVA 3-16mm)
Motor1 HP1 HP
Power110v, 1-phase110v, 1-phase
Net Weight540 lb244.9 kg
Gross Weight638 lb289.4 kg
Dimensions37-3/16 x 22 x 72-13/16 in.37-3/16 x 22 x 72-13/16 in.
Weight683683

Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional item - Call for price:
* Rip Fence for straight, repeated cuttings easily removable for varied sizes
* Miter protractor for angular cutting
* Electro-magnetic switch and overload protection
* Groove Table
