<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc" align="right">
<div align="center">Sheet size
</div>
</td>
<td class="TableText" width="257" align="left">
<div align="center">157"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Shearing capacity - Mild Steel
</div>
</td>
<td class="TableText" align="left">
<div align="center">1/4" mild steel @ 65,000 PSI
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shearing capacity - Mild Steel
</div>
</td>
<td class="TableText">
<div align="center"><span id="page3R_mcid38"><span role="presentation" dir="ltr">1/8” Stainless Steel @ 95,000 PSI UTS<br>
<span id="page3R_mcid39"><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">(Must consider option for Cr12MoV blades.)</span><span role="presentation" dir="ltr"> </span></span> </span></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Shear angle
</div>
</td>
<td class="TableText" align="left">
<div align="center">1° 30'
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">No load strokes
</div>
</td>
<td class="TableText" align="left">
<div align="center">10
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Throat depth
</div>
</td>
<td class="TableText" align="left">
<div align="center">4.7"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Adjustment range of back gauge
</div>
</td>
<td class="TableText" align="left">
<div align="center">0.75" - 36"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Hydraulic oil capacity
</div>
</td>
<td class="TableText" align="left">
<div align="center">66 gals.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Motor
</div>
</td>
<td class="TableText" align="left">
<div align="center">15 HP, <span id="page3R_mcid45"><span role="presentation" dir="ltr">220 or 440 Volts, 3 phase</span></span><br>
(specify voltage)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Dimensions
</div>
</td>
<td class="TableText" align="left">
<div align="center">182" x 66" x 66"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc" align="right">
<div align="center">Weight approx.
</div>
</td>
<td class="TableText" align="left">
<div align="center">22,046 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>

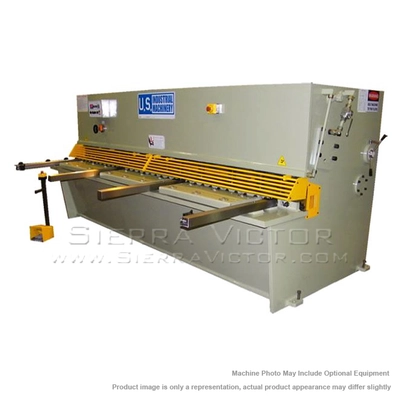

<p>Our manual control hydraulic shears offer easy configuration to cut
materials of varying thickness with stroke length adjustments as well.
</p>
<p><strong>EQUIPPED WITH:</strong>
</p>
<ul>
<li><strong>Material drop/support chute (This device makes it easier to retrieve sheared drops and is normally required by customers) - Included in Price</strong></li>
<li>Squaring Arm with inlaid scale, 39”</li>
<li>Bolt on table segments...quantity of 3</li>
<li>High Carbon, High Chrome Shear Blades</li>
<li>Hold-downs faced w/anti-mar neoprene</li>
<li>Ball Transfers on Each Table Segment</li>
<li>Swing Beam Design</li>
<li>Manual Quick Change Blade Gap Adj.</li>
<li>Pressure Sensing Hold Downs</li>
<li>Squaring Arm, 39” from blade to end</li>
<li>Electric Stroke Adjustment</li>
<li>Stroke Counter</li>
<li>Operator Control Console</li>
<li>Front-operated Power Back Gauge with DRO</li>
<li>Shadow Line with LED lighting</li>
<li>Blade Guard, Micro Switch Protected</li>
<li>Low Noise Gear Pump</li>
<li>Hydraulic, Electrical Overload Protection</li>
<li>Support Arms Include</li>
<li>Automatic Swing-up on Back Gauge</li>
<li>6CrW2Si blades for cutting mild carbon steel</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td width="436" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center">3-axis CNC programmable back gauge:<br>
Touch-screen operated. Controls back gauge depth, blade gap and stroke length.<br>
It has a 200 program storage capacity, each program up to 20 steps, <br>
and it can be operated in manual or automatic mode.
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid15"><span role="presentation" dir="ltr">Upgrade to</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">P</span><span role="presentation" dir="ltr">ne</span><span role="presentation" dir="ltr">u</span><span role="presentation" dir="ltr">m</span><span role="presentation" dir="ltr">a</span><span role="presentation" dir="ltr">t</span><span role="presentation" dir="ltr">i</span><span role="presentation" dir="ltr">c</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">S</span><span role="presentation" dir="ltr">h</span><span role="presentation" dir="ltr">ee</span><span role="presentation" dir="ltr">t</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">S</span><span role="presentation" dir="ltr">up</span><span role="presentation" dir="ltr">p</span><span role="presentation" dir="ltr">o</span><span role="presentation" dir="ltr">rt</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">AND Material drop chute</span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid17"><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">Upgrade to </span><span role="presentation" dir="ltr">6</span><span role="presentation" dir="ltr">-</span><span role="presentation" dir="ltr">F</span><span role="presentation" dir="ltr">oo</span><span role="presentation" dir="ltr">t</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">S</span><span role="presentation" dir="ltr">qua</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">i</span><span role="presentation" dir="ltr">n</span><span role="presentation" dir="ltr">g A</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">m</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">with inlaid scale</span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid18"><span role="presentation" dir="ltr">Upgrade to </span><span role="presentation" dir="ltr">8</span><span role="presentation" dir="ltr">-</span><span role="presentation" dir="ltr">F</span><span role="presentation" dir="ltr">oo</span><span role="presentation" dir="ltr">t</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">S</span><span role="presentation" dir="ltr">qua</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">i</span><span role="presentation" dir="ltr">n</span><span role="presentation" dir="ltr">g A</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">m</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">with inlaid scale</span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid19"><span role="presentation" dir="ltr">Upgrade to </span><span role="presentation" dir="ltr">10</span><span role="presentation" dir="ltr">-</span><span role="presentation" dir="ltr">F</span><span role="presentation" dir="ltr">oo</span><span role="presentation" dir="ltr">t</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">S</span><span role="presentation" dir="ltr">qua</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">in</span><span role="presentation" dir="ltr">g A</span><span role="presentation" dir="ltr">r</span><span role="presentation" dir="ltr">m</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">with inlaid scale</span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid20"><span role="presentation" dir="ltr">Upgrade Cr12MoV blades for cutting up to 1/8” thick stainless</span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center"><span id="page32R_mcid21"><span role="presentation" dir="ltr">Upgrade to </span><span role="presentation" dir="ltr">48</span><span role="presentation" dir="ltr">”</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">B</span><span role="presentation" dir="ltr">a</span><span role="presentation" dir="ltr">ck</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">G</span><span role="presentation" dir="ltr">aug</span><span role="presentation" dir="ltr">e;</span><span role="presentation" dir="ltr"> </span><span role="presentation" dir="ltr">n</span><span role="presentation" dir="ltr">o s</span><span role="presentation" dir="ltr">win</span><span role="presentation" dir="ltr">g </span><span role="presentation" dir="ltr">u</span><span role="presentation" dir="ltr">p</span><span role="presentation" dir="ltr"> </span></span>
</div>
</td>
</tr>
<tr>
<td>
<div align="center">Training in our Memphis, TN Showroom
</div>
</td>
</tr>
<tr>
<td>
<div align="center">Training at customer site, less than 300 miles from Memphis
</div>
</td>
</tr>
<tr>
<td>
<div align="center">Training at customer site, more than 300 miles from Memphis
</div>
</td>
</tr>
<tr>
<td>
<div align="center">Training outside continental USA - Please Call for Quote
</div>
</td>
</tr>
</tbody>
</table>
