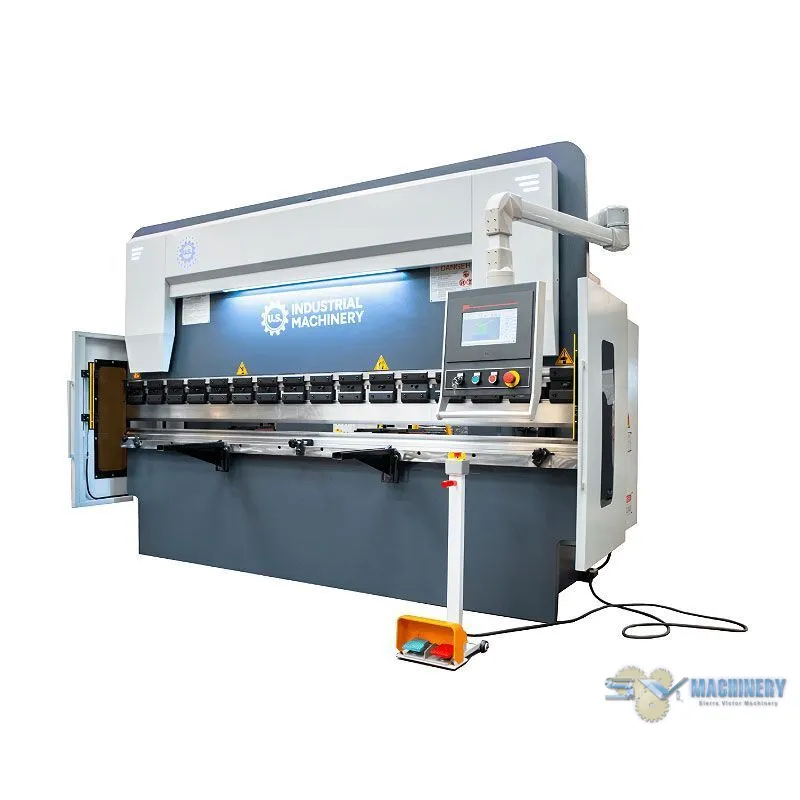

U.S. INDUSTRIAL USHB200-10CNC 200 Ton x 10 ft CNC Hydraulic Press Brake

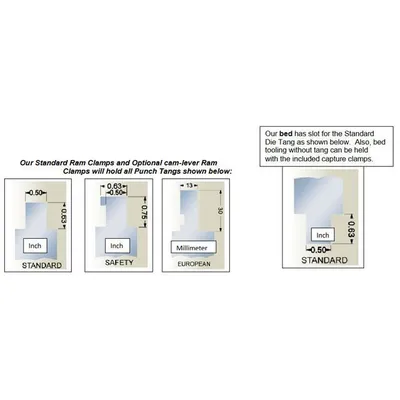

<!--StartFragment--> <ul><li>Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless. Other key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.</li><li>Ram Deflection Adjustment</li><li>Massive Torsion Bar for Parallelism</li><li>Three Speed Ram</li><li>Bottom Time Delay</li><li>Inching, Single Cycle and Auto Run</li><li>Setting for ram speed slowdown and rapid return position</li><li>Forged Heavy Duty Cylinder and Cylinder Body</li><li>Rapid Approach, Bending Cycle and Rapid Retreat</li><li>All Steel Construction</li><li>Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included</li><li>Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1</li><li>Space between Ram Tool Clamps allows for deep box bending</li><li>Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel.<strong>&nbsp;*Special Note</strong>: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose.&nbsp;<strong>*There is no warranty on this tooling.</strong></li></ul> <p><strong>EQUIPPED WITH:</strong></p> <ul><li><strong>CNC 2-Axis Color Graphic Control:&nbsp;</strong>Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup</li><li>Sick de Tec 4 light curtain system</li><li>CNC Controlled Mechanical Auto Crown</li><li><strong>NOTE: These items are STANDARD and&nbsp;</strong><strong>included&nbsp;</strong><strong>in price</strong></li></ul> <!--EndFragment-->
