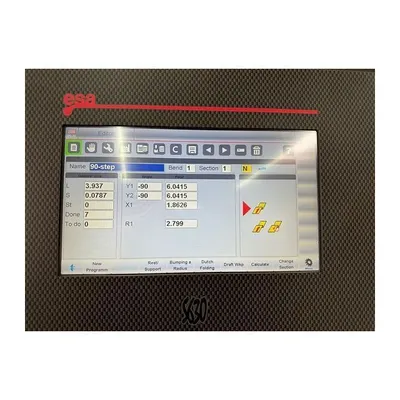

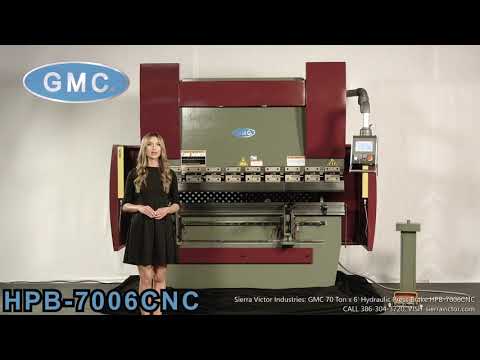

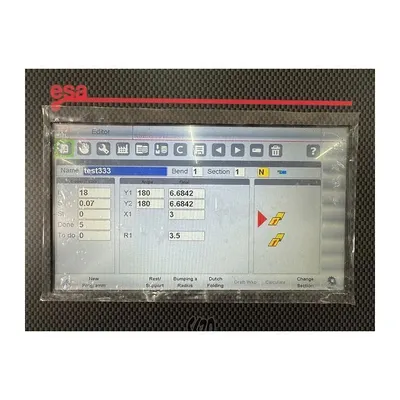

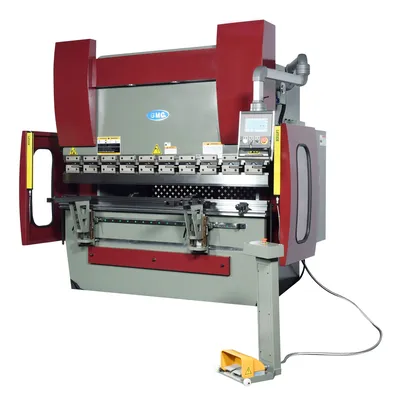

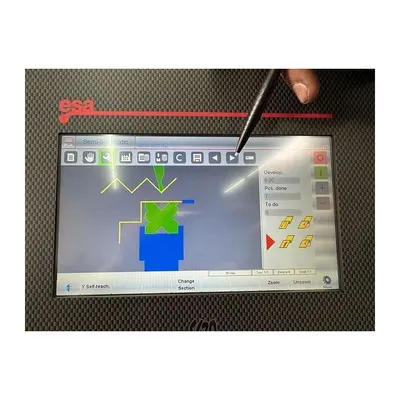

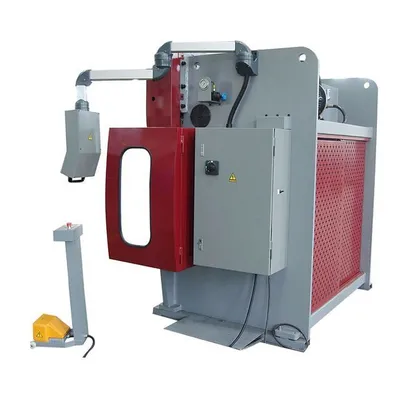

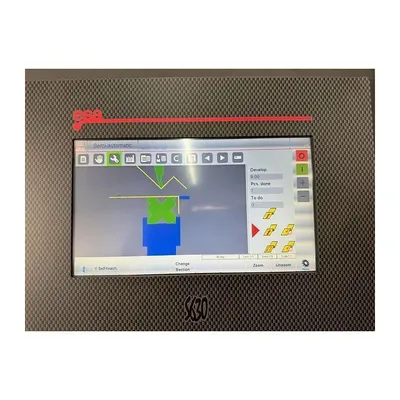

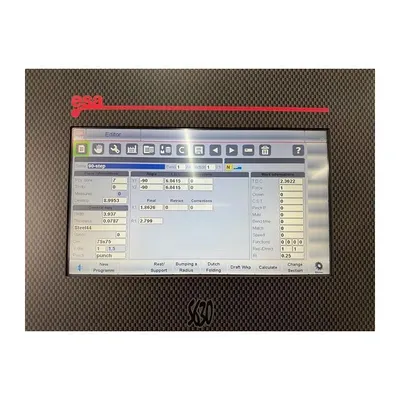

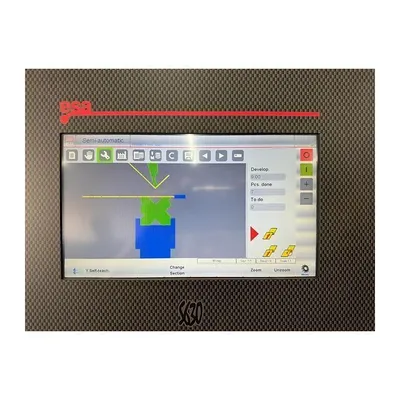

<ul><li>Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.</li><li>ISO 9001 certified</li><li>Meet OSHA and CE safety standard</li><li>ESA (Italy) Model 630, 3 Axis CNC Controller</li><li>Die library, offline programming, stores thousands of programs</li><li>Programmable Angle/ Angle Correct</li><li>10” Touch screen</li><li>3 Axis CNC Graphic Controller</li><li>Y axis Ram with high precision linear encoder</li><li>X servo Back gauge</li><li>R programmable Back gauge height</li><li>Line by line coding</li><li>2D Graphic Drawing Mode</li><li>Bend Sequence Optimization for collision detection</li><li>Spread Length Calculation</li><li>Germany Rexroth hydraulic system</li><li>Yaskawa Servo motor and Drives</li><li>Schneider electrical components</li><li>All steel construction for maximum rigidity</li><li>Hydraulic logic system centrally located and quiet</li><li>Safety type foot pedal with handle and E-stop switch</li><li>Safety 24V low voltage & overload protection</li><li>One year industrial warranty for parts</li><li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li><li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>

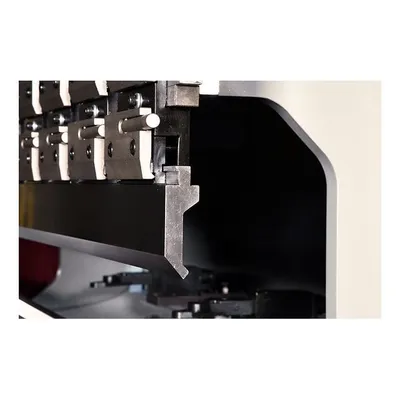

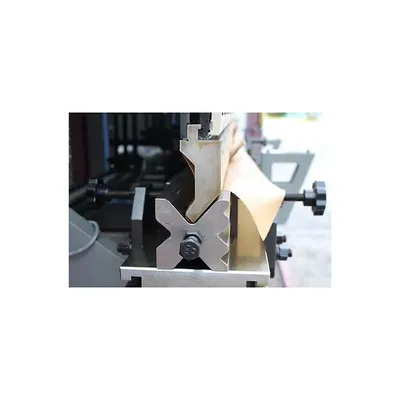

<ul><li>ESA (Italy) Model 630, 3 Axis CNC Controller</li><li>(2) 24" front support arms, Quick Release for easy positioning</li><li>Quick release segmented (American Style Tooling) punch holder</li><li>Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)</li><li>Full Length Vee Die with 6 assorted sizes HRC 50</li><li>Lntech Light Curtain System</li><li>Side and Back Safety Fence</li><li>Movable Foot Pedal with Estop meet OSHA safety standard</li></ul>
