<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText" width="257">
<div>2 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. Thickness (Mild Steel)
</div>
</td>
<td class="TableText" width="257">
<div>12 ga.
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Roll Diameter
</div>
</td>
<td class="TableText" width="257">
<div>3.77"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Throat Depth
</div>
</td>
<td class="TableText" width="257">
<div>11"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Stand
</div>
</td>
<td class="TableText" width="257">
<div>Included
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Adjustable Depth Stop
</div>
</td>
<td class="TableText" width="257">
<div>Included
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Power
</div>
</td>
<td class="TableText">
<div>220 Volt, Single Phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Weight
</div>
</td>
<td class="TableText">
<div>770 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Shipping Dimensions
</div>
</td>
<td class="TableText" width="257">
<div>
<div>56" x 22" x 45"
</div>
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

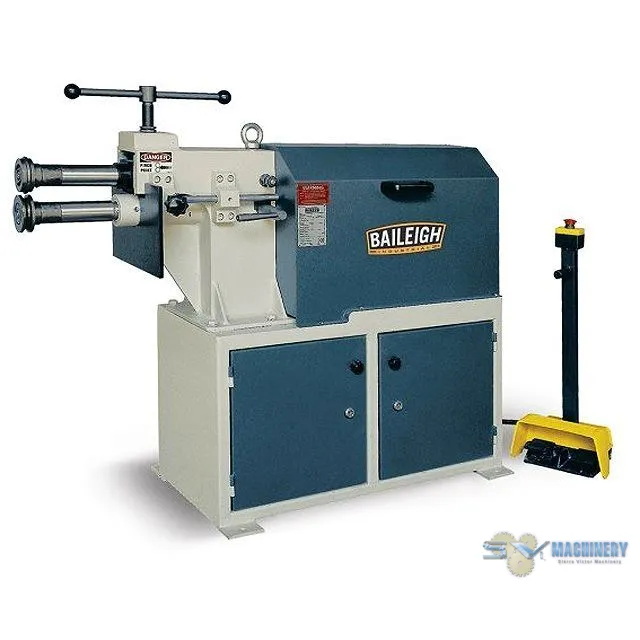

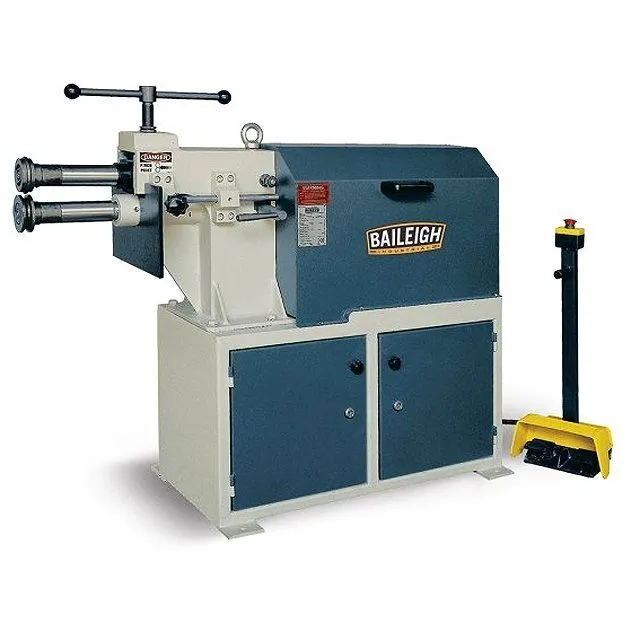

<li>Built with a <strong>welded plate steel frame</strong>, this power bead roller can tackle up to <strong>12 gauge</strong> mild steel. Equipped with foot pedals, it’s easy to operate and perfect for heavy <strong>industrial</strong> applications.</li>
<li><strong>2 hp</strong> motor runs on <strong>220-volt single</strong>-phase power.</li>
<li><strong>Industrial-grade gearbox</strong> comes with a brake to maintain accuracy.</li>
<li><strong>10” throat</strong> depth is suitable for working on the edges of material.</li>
<li><strong>Foot pedal controls</strong> leave your hands free to guide the material. You only need one operator.</li>
<li><strong>Forward and reverse</strong> pedals help with delicate patterns that you want to go over.</li>
<li>Movable steel plate <strong>depth stop</strong> provides a solid surface to guide you and produce straight beads.</li>
<li>Top handle <strong>moves the top shaft vertically</strong> so that you can easily open it up and get the material in there.</li>
<li>Includes <strong>4 tooling profiles</strong>: round, shear, step, crimp rolls.</li>
<li>Cabinet built into the base offers convenient storage for tooling.</li>
<li><strong>Adjustable depth on the bottom</strong> lets you get a custom profile by offsetting your rolls.</li>
<li>Disengage the black handle to push the shaft back and forth and get your offset.</li>
<li>Robust, <strong>fully welded steel frame</strong> ensures many years of accurate, reliable metal forming even at maximum capacity.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>This industrial bead roller includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalforming experience.</li>
<li>Tooling and replacement <strong>parts are usually in stock</strong>, so we can shop them to you quickly.</li>
</ul>
