<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="127" rowspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">90°
</div>
</td>
<td class="TableText">
<div align="center">3.25 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">45°
</div>
</td>
<td class="TableText">
<div align="center">3 x 3 in.
</div>
</td>
</tr>
<tr>
<td width="128" bgcolor="#cccccc" class="TableText">
<div align="center">60°
</div>
</td>
<td width="257" class="TableText">
<div align="center">2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Blade Size
</div>
</td>
<td class="TableText">
<div align="center">10 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3HP, 1PH 115V or 230V<br>
and 3Ph, 230V or 460V<br>
(specify voltage at time of order)
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">1PH FLA</span>
</div>
</td>
<td class="TableText">
<div align="center">115V 24 amps and 230V 12 amps
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">3PH FLA</span>
</div>
</td>
<td class="TableText">
<div align="center">208B 6.6 amps, 230V 6.4 amps <br>
and 460V 3.2 amps.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Spindle arbor
</div>
</td>
<td class="TableText">
<div align="center">5/8"
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Spindle Speed
</div>
</td>
<td class="TableText">
<div align="center">3,450 RPM
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">300 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">L 47 x W 37 x H 35 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

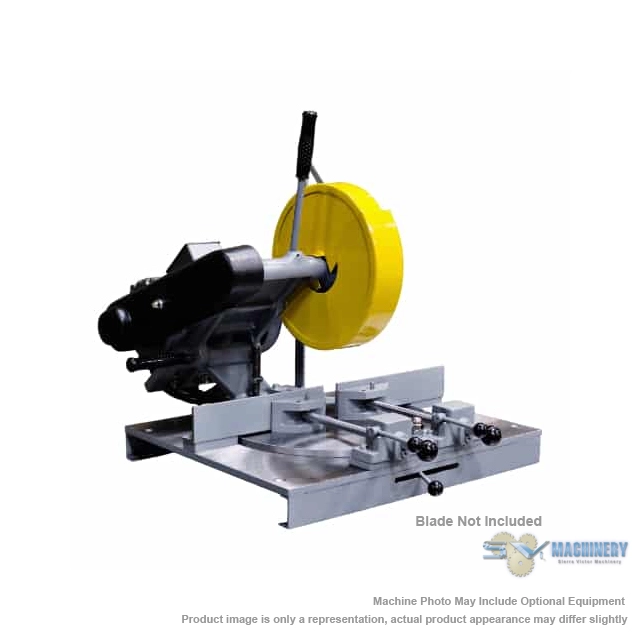

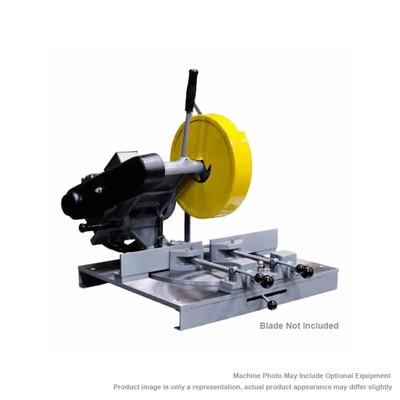

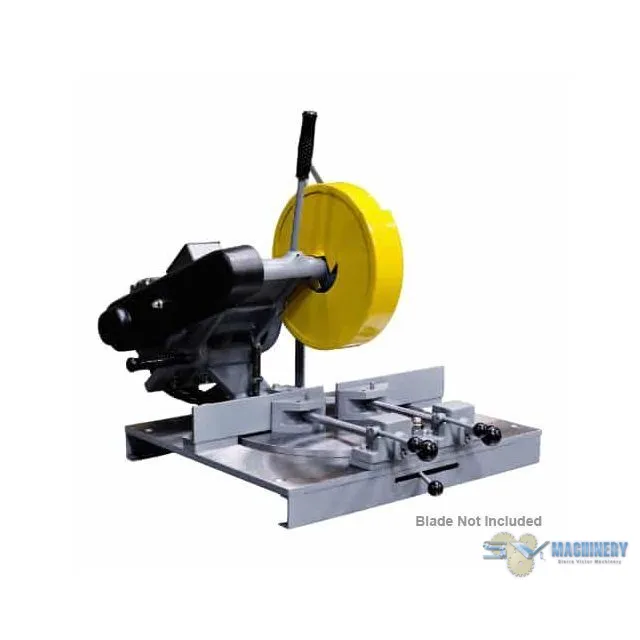

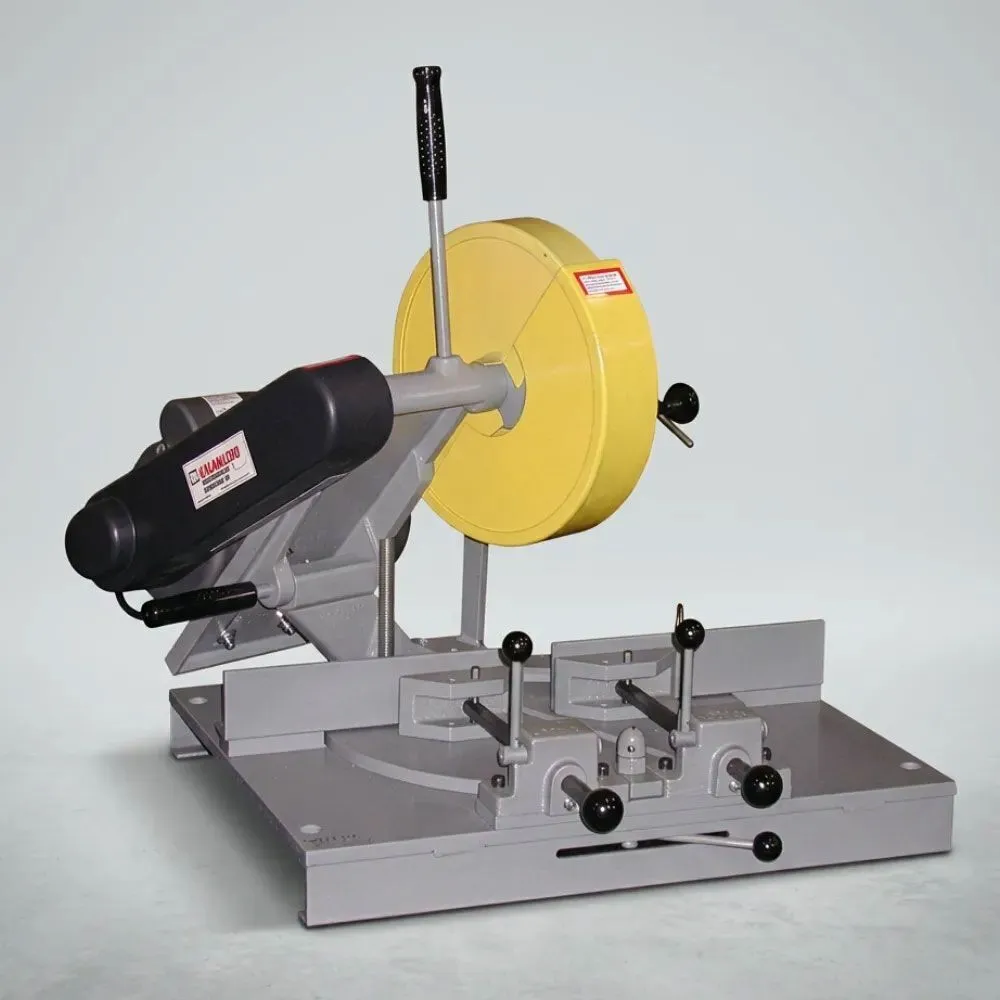

<li>The Kalamazoo Industries KM10HS 10 inch non-ferrous saw is a powerful high speed saw that uses a carbide blade to cut aluminum and other non-ferrous materials efficiently and fast. The KM10HS features all-steel construction, a powerful 3HP motor, dual cam lock vises, and mitring head capabilities.</li>
<li>Blade type: high speed carbide tipped blade <strong>(not included).</strong></li>
<li>Retractable safety clamshell blade guard.</li>
<li>Lever-lock for saw table.</li>
<li>Positive index holes – Comes with locking pin.</li>
<li>Mitres 45° degrees left and right. 60° right <strong>(only).</strong></li>
<li>Heavy-duty sealed ball bearings.</li>
<li>Steel handle with plastic hand grip.</li>
<li>V-belt drive.</li>
<li>V-belt guard.</li>
<li>steel saw base .</li>
<li>Cast aluminum saw arm.</li>
<li>Cast aluminum saw trunnion</li>
<li>Two cam lock vises</li>
<li><strong><span data-preserver-spaces="true">DESIGNED TO CUT THE FOLLOWING:</span></strong>
<ul>
<li>Aluminum</li>
<li>Brass</li>
<li>Plastic</li>
<li>Other non-ferrous materials</li>
</ul>
</li>
</ul>
