- If you're looking for versatility and power, the Edwards 100 Ton JAWS Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.
- The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
- Four Available Workstations
- High Capacity Angle Shear
- Universal Open Tooling Station
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls
- MADE IN THE USA
- Manufacturer
- Specifications
- Options/Accessories
- Video

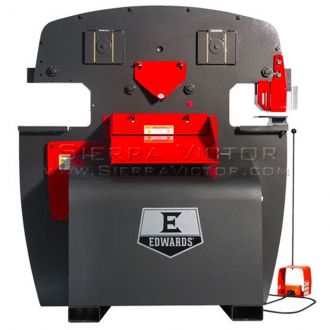

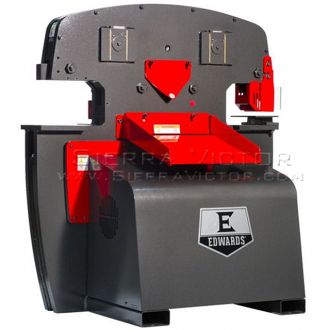

EDWARDS 100 Ton Ironworker IW100
ITEM: 100 Ton Hydraulic Ironworker
MANUFACTURER: EDWARDS
MODEL: IW100
Manufacturer:
Edwards Ironworkers
|
PUNCH
|
Maximum Capacity (in.)
|
1-1/16" Dia. in 1" A36
(65,000 PSI Tensile) |
|
|
Rating
|
100 Tons
|
||
|
Throat Depth (in.)
|
11
|
||
|
Open Height (in.)
|
8-3/4
|
||
|
Shut Height (in.)
|
6-15/16
|
||
|
Stroke (in.)
|
1-13/16
|
||
|
Work Height (in.)
|
39-1/16
|
||
|
FLAT BAR SHEAR
|
Max. Capacity (in.)
|
3/4 x 14
1 x 10 |
|
|
Max. Round Capacity (in.)
|
1-1/4
|
||
|
Max. Square Capacity (in.)
|
1-1/4
|
||
|
Work Height (in.)
|
37
|
||
|
ANGLE SHEAR
|
Max. Size (in.)
|
6 x 6 x 1/2
|
|
|
Work Height (in.)
|
43-15/16
|
||
|
OPTIONAL
COPER NOTCHER |
Max. Capacity (in.)
|
2-1/2 x 6 x 1/2
|
|
|
Work Height (in.)
|
42
|
||
|
OPEN STATION SPECIFICATIONS
|
Throat Depth (in.)
|
14-3/4
|
|
|
Open Height (in.)
|
8-3/4
|
||
|
Shut Height (in.)
|
6-15/16
|
||
|
Stroke (in.)
|
1-13/16
|
||
|
Work Height (in.)
|
37
|
||
|
GENERAL SPECIFICATIONS
|
Electric Motor
|
Standard
|
7.5 HP, 3 Ph, 208Vor 230V, 1770 RPM 26A
|
|
Optional
|
7.5 HP 3~ 460V, 1765 RPM 11 A
7.5 HP 3~ 575V, 1770 RPM 8 A 5 HP 1~ 208 V or 230V, 1725 RPM 23 A *7.5 HP 1~ 230V, 1765 RPM 36 A |
||
|
Hydraulic Pump Size (GPM)
|
10-1/2, 2 stage
|
||
|
Valve Pressure (PSI)
|
3,500
|
||
|
Reservoir (gallons)
|
17
|
||
|
Cylinder (in.)
|
3-1/2 ram
|
||
|
DIMENSIONS
|
Height (in.)
|
61-11/16
|
|
|
Width (in.)
|
56-1/8
|
||
|
Depth (in.)
|
45
|
||
|
Weight (lb.)
|
4,650
|
||
*Required for 1~ Hydraulic Accessory Pack
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
