- Description
- Saw blade butt welder with integrated annealing unit
- Blade shear, grinder
- Brush for cleaning lower drive wheel
- Low voltage working lamp
- One set of required tools
- One instruction and parts manual
- Rip Fence for straight, repeated cuttings easily removable for varied sizes
- Miter protractor for angular cutting
- Electro-magnetic switch and overload protection
- Groove Table
- Manufacturer
- Specifications
- Options/Accessories
- Rip Fence for straight, repeated cuttings easily removable for varied sizes
- Miter protractor for angular cutting
- Electro-magnetic switch and overload protection
- Groove Table
- Custom Freight

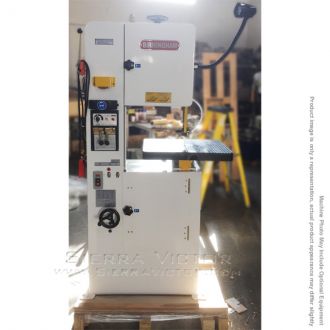

BIRMINGHAM 14" Vertical Metal Cutting Band Saw KB-36
OPTIONAL ITEMS:
ITEM: 14" Vertical Metal Cutting Band Saw
MANUFACTURER: BIRMINGHAM
MODEL: KB-36
Manufacturer:
Birmingham
Machine Type
Machine Category:
Bandsaws
Position:
Vertical
Metalworking
Saw Capacity:
14"+
Cutting Capacity |
Throat Depth |
14" (355mm) |
Max, work height |
9-1/16" (230mm) |
|
Table Size |
19-1/2" x 15-1/4" |
|
Table inclination (4 ways) |
15° |
|
Saw Blade Length |
111-13/16" |
|
Saw Blade Width |
3-16mm |
|
Saw Blade Speeds |
20-90m/min (65-295 fpm) |
|
Butt Welder Capacity |
2.4 KVA 3-16mm (1/8" - 5/8") |
|
Drive Motor |
1 HP, 1-phase, 110V |
|
Net Weight (approx.) |
540 lbs. |
|
Gross Weight (approx.) |
638 lbs. |
|
Measurement (LxWxH) |
37-3/16" x 22" x 72-13/16" |
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
