- Description
- Our largest power hammer, the MH-37HD can shape 4 or 5 pieces of metal at once for fast production of multiple parts. A 1-1/2”-thick steel plate frame keeps the machine rigid
- 37” throat depth can handle large or pre-bent panels.
- 0 to 1,500 beats per minute (inverter-driven variable speed).

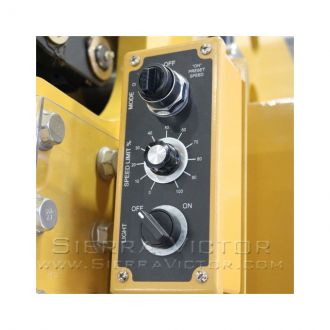

- Adjust the speed via the foot pedal or operator panel.

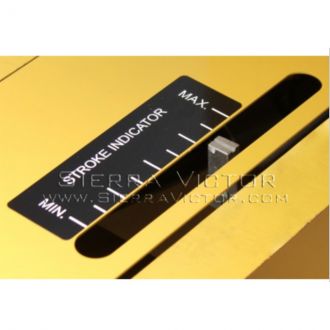

- On-the-fly stroke adjustments range from 0.1” to .750”.
- 1/8” steel and 1/4” soft aluminum shrinking capacity.
- Runs on 220-volt 3-phase power.
- Switch between rigid Pullmax-style mode and spring-slapping Yoder style mode, depending on your project.
- Use rigid mode for short stroke shaping and flanging. No "give" between die heads.
- Non-rigid mode creates a dead blow hammering effect, suitable for aggressive shrinking and planishing.

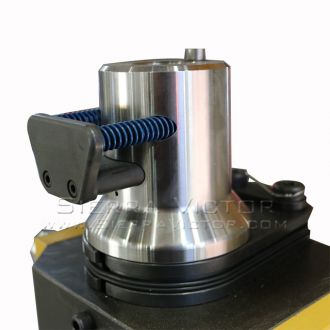

- Tooling changes take only a few seconds. Release the die, pull out the pin, switch, and replace the pin.
- Includes 7 die sets:
- Large shrink die set.
- Flat top master die.
- Linear stretch die.
- 12”, 24”, and 36” radius dies.
- 1” x 6” planish die.
- Other large radius dies and shrinking and stretching dies are available.

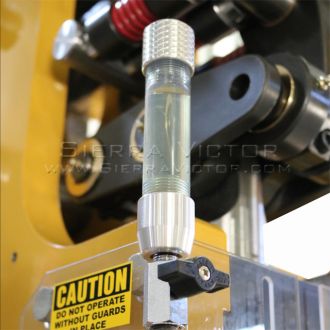

- Convenient maintenance with grease zerks, exposed and easy to reach.

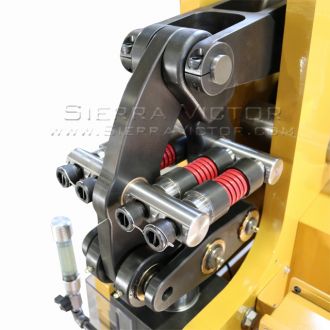

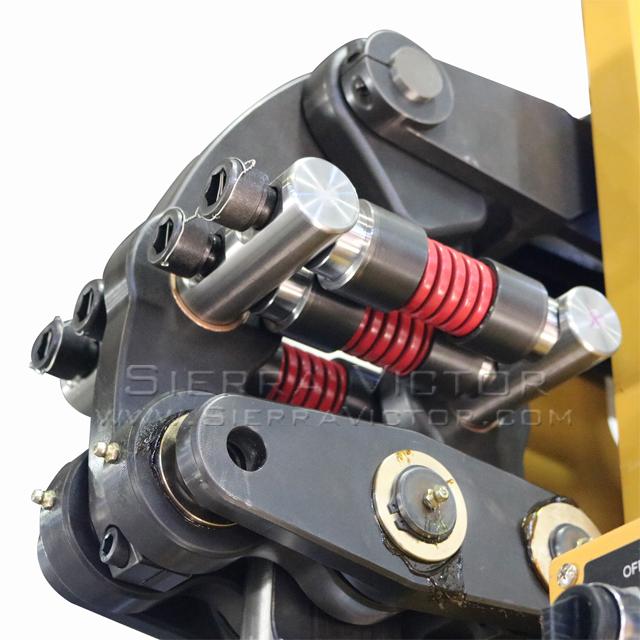

- Main hammering springs are replaceable, so the power hammer lasts longer.

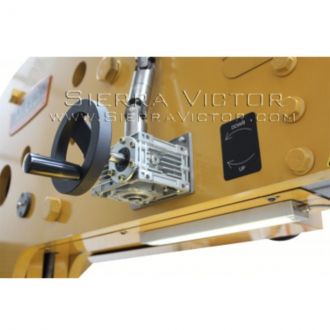

- Comes standard with a work light.
- Massive steel plate frame prevents deflection and allows this power hammer to deliver maximum force for fast, high-quality shaping.
- Covered by a 1-year parts warranty.
- We offer lifetime technical support by phone, provided by a team of experienced metalworkers.
- Recommended for: Large automotive shops making off-road vehicles.
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax

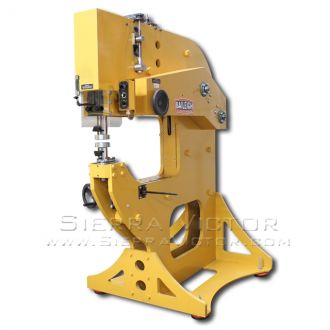

BAILEIGH MH-37HD Power Hammer
ITEM: 37" Power Hammer
MANUFACTURER: BAILEIGH
MODEL: MH-37HD
Manufacturer:
Baileigh Industrial
Motor Hp |
5 HP |
Speed |
0 – 1500 beats / minute |
Mild Steel Capacity |
1/8" |
Tooling Height Adjustment |
2" |
Throat Depth |
37" |
Capacity (Mild Steel) |
.125" |
Aluminum Capacity |
.250" Soft |
Length Of Stroke Adj |
0.1" - 0.75" |
Power |
220V / 3-phase |
Shipping Dimensions (L/W/H) |
72" x 60" x 90" |
Shipping Weight |
6,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
