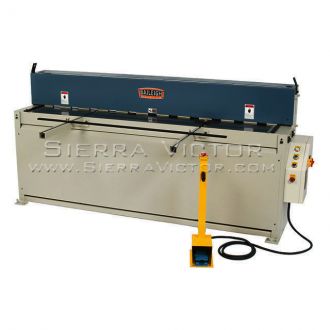

BAILEIGH Compact Hydraulic Shear SH-8014
The SH-8014 hydraulic shear from Baileigh industrial is a great shear for those fabrication shops that mainly work with smaller gauge sheet metal. The SH-8014 metal shear from Baileigh Industrial has an 80" cutting width and can shear up to 14 gauge mild steel. The table of the SH-8014 hydraulic shear is made from ground and polished steel plate allowing enough rigidity to shear at full capacity over and over again. The SH-8014 hydraulic shear can also cut through 18 gauge stainless steel.
Operating on 220 volt three phase power, the industrial grade
hydraulics pull the top shearing head with top blade smoothly through
the material being cut increasing blade life. The SH-8014 shear has top
and bottom blades have multiple cutting edges that extends blade life.
The SH-8014 features hydraulic hold downs that hold the sheet metal
firmly against the in feed table eliminating any lifting of material as
it is cut which improves blade life.
The SH-8014 hydraulic metal shear has a manual back gauge or material
stop as well as front support arms to help the operator handle the
sheet metal and provide for repeatable shearing. The operator control
panel has a switch that allows the fabricator to jog the blade, for
accurate blade adjustment, or go into an automatic mode that is
initiated by the foot pedal control.
Max. Shear Length
|
80"
|
Max Material Thickness - Mid Steel
|
14 ga / .075”
|
Max Material Thickness - Stainless Steel
|
18 ga / .048”
|
Strokes / Minute
|
26
|
Front Gauge Length
|
24"
|
Back Gauge Length
|
24"
|
Blade Angle
|
1°
|
Motor
|
3 hp
|
Power Requirement
|
220 volt / 3 phase
|
Dimensions (L/W/H)
|
104” / 36” / 53”
|
Weight
|
3,700 lbs
|
Specifications are subject to change without notice.
*Mild Steel T.S. 64,000 PSI
**Stainless Steel T.S. 100,000 PSI
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
