- Need to cut a lot of aluminum or copper? The CS-355M high-speed cold saw turns at 3,200 rpm, perfect for making pristine cuts in soft metals without gumming up the blades.
- Accepts up to 14” blade.
- Maximum capacity of 4.25” round tube at 90°.
- Miters 45° right and 90° left, great for slotting applications.
- 5.5 hp motor drives a belt pulley system to achieve maximum RPMs as efficiently as possible.
- Runs on 220-volt 3-phase power.
- We based the design on our CS-350M cold saw, known for its reliability over many years of cutting.
- Self-centering American-style vise saves you the trouble of making changes to fit different diameters of tube or pipe.
- Floating vise clamp independently holds the jaws (on the left and right of saw blade).
- Vise extends blade life by securely holding both sides of the cut material without dropping them into the rotating blade.
- Stop rod allows you to easily set up repeatable lengths for production runs.
- Heavy cast iron base keeps the machine stable, so that the blade will cut accurately throughout the saw’s lifetime of use.
- Flood coolant system maintains high cut quality and helps blades last longer.
- Replacement parts are in stock, so you can get them quickly.
- Baileigh covers this circular cold saw with a 1-year parts warranty.
- Comes with lifetime technical support by phone. Call up our team of service reps—all with hands-on machine experience—whenever you have a problem.
- Recommended for: Non-ferrous applications
- Manufacturer
- Specifications
- Custom Freight
- Required products
- Baileigh Sales Tax

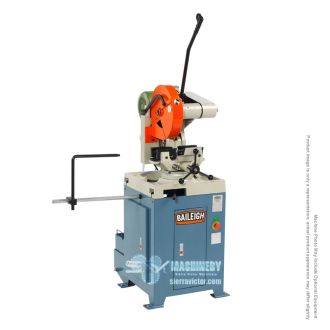

BAILEIGH Manual Cold Saw CS-355M
ITEM: 14" Non-Ferrous Metal Cutting Saw
MANUFACTURER: BAILEIGH
MODEL: CS-355M
Manufacturer:
Baileigh Industrial
Country of Manufacture |
Taiwan |
Max. Blade Diameter |
14" |
Operation |
Manual |
Head Miter |
90° Slotting, 45° Left / 45° Right |
Round Solid at 45° |
1.575" |
Square Tube at 45° |
2.953" x 2.953" |
Round Tube at 45° |
2.953" |
Rectangle Tube at 45° |
2.953" x 2.362" |
Round Solid at 90° |
2.362" |
Rectangle Tube at 90° |
4.25" x 3.5" |
Square Tube at 90° |
4.25" x 4.25" |
Round Tube at 90° |
4.331" |
Coolant System |
Yes |
Slotting Capable |
Yes, Left and Right |
Vice Style |
Dual Action, Self Centering |
Max. Vice Opening |
6.5" |
Head Style |
Pivot |
Arbor Size |
1" |
Motor |
5.5 HP |
Blade Speed |
3200 (rpm) |
Power |
220V / 3-phase |
Shipping Dimensions |
60" x 44" x 48" |
Shipping Weight |
790 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
