- Description
- Within our lineup of vertical bandsaws, the BSV-18VS-220-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.
- 1 hp motor runs on 220-volt single phase power.
- Wide 18" throat depth.
- 12.9” maximum cutting thickness.
- Accepts standard 1/8” to 5/8” blades.
- Cast iron table can pivot front to back and left to right.
- Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
- Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
- This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
- LED work light lets you see what you’re cutting more clearly.
- Covered by a 1-year parts warranty.
- Both the saw and its replacement parts are typically in stock for fast deliveries.
- Includes lifetime technical support by phone.
- Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
- Manufacturer
- Specifications

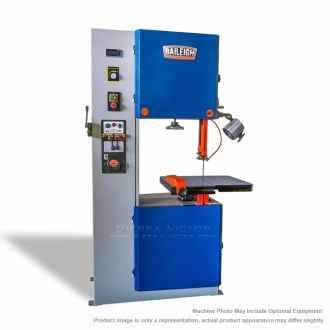

BAILEIGH 18" Variable Speed Vertical Bandsaw BSV-18VS-220-V2
ITEM: 18" Variable Speed Vertical Bandsaw
MANUFACTURER: BAILEIGH
MODEL: BA9-1230401
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Control:
Variable Speed
Position:
Vertical
Metalworking
Saw Capacity:
18"+
Table Size
|
19.68" x 21.25"
|
Butt-Welder Capacity (Blade Width)
|
.125” – .625”
|
Slant of Table
|
15° Left, 45° Right
|
Motor
|
1 HP
|
Speeds
|
Variable
|
Maximum Thickness
|
12.9"
|
Throat Depth
|
18"
|
Working Height
|
33.26"
|
Blade Length
|
Range 146.45" - 147"
|
Blade Speed
|
95 - 1400 fpm
|
Blade Thickness
|
.032"
|
Speed Control
|
Inverter
|
Power
|
220 Volt Single Phase
|
Shipping Dimensions
|
60” x 45” x 93”
|
Shipping Weight
|
807 lbs.
|
Special Notes
|
14 TPI, 1/4" wide blade included
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
