- Description
- Based on our BS-300M, the Baileigh BS-916M metal cutting band saw has a compact footprint for small shops. This saw’s cast iron head and fully-welded steel base reduce vibration and ensure accuracy.
- 1.5 hp motor is powered by 220-volt single-phase power.
- 8.75” round capacity at 90°.

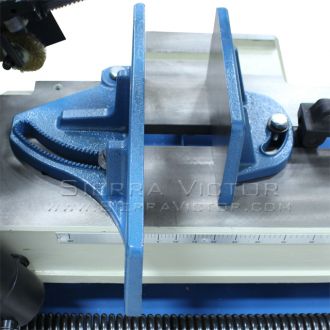

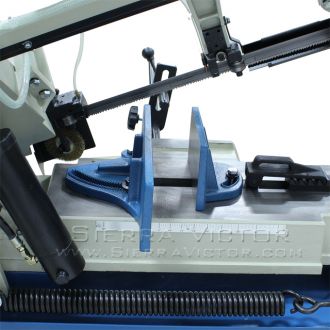

- Vise miters up to 45°.
- Accepts standard 1” blades.
- 4 cutting speeds: 82, 132, 170, and 235 fpm.
- Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty.
- You can control the hydraulic descent through an easy-to-access panel located on top of the bow.
- Automatically shuts off at the end of the cut for safety and efficiency.
- Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life.
- Covered by a 1-year parts warranty.
- We typically keep this metal-cutting band saw and its replacement parts in stock for quick deliveries.
- You can count on lifetime technical support by phone. Whenever you need help with the machine, Baileigh’s experienced reps are ready to answer your questions.
- Manufacturer
- Specifications
- Required products

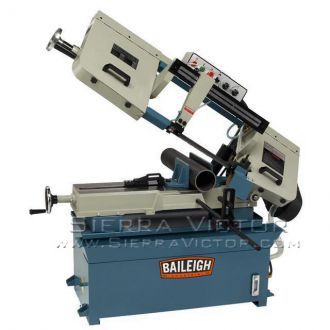

BAILEIGH 8.75 in. Horizontal Band Saw BS-916M
ITEM: 8.75" Horizontal Bandsaw
MANUFACTURER: BAILEIGH
MODEL: BA9-1001740
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Bandsaws
Position:
Horizontal
Metalworking
Saw Capacity:
8"+
Return
|
Manual
|
Miter Adjustment
|
Vise
|
Miter Angle
|
0 – 45°
|
Motor
|
1.5 HP
|
Capacity Rectangular 90 x 45 x 45L
|
8.85" x 13.5" x 8.85" x 6.5"
|
Capacity Round 90° x 45°
|
8.85" x 6.5"
|
Capacity Square 90° x 45°
|
8.85" x 6.5"
|
Table Height
|
24"
|
Blade Guide
|
Roller
|
Blade Speed (fpm)
|
82 x 132 x 170 x 235
|
Descent Control
|
Hydraulic
|
Drive
|
Belt x Pulley
|
Power
|
220V / 1-phase
|
Shipping Dimensions
|
68" x 30" x 43"
|
Weight
|
700 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
