- Description
- The PR-609 hydraulic plate roll features an industrial-grade hydraulic system and welded steel frame that offer enough power to handle 9-gauge mild steel all day long. All functions on this steel plate rolling machine are hydraulically controlled for reliability.
- 6' forming width.
- 9 gauge mild steel maximum capacity.
- 3 hp motor runs on 220-volt 3-phase.
- Hydraulic system controls the back roll.
- Foot pedestal allows you to easily control some bending functions; forward, reverse, up, and down.
- Simple release mechanism on the top roll to release work that has been wrapped around the top roll.
- Digital readout shows you the back roll’s exact position the whole time.
- Fully integrated plate steel frame keeps the forming rolls perfectly in alignment during the bending process.
- Dual emergency stop cables are located on the back and front of the machine.
- Covered by a 1-year parts warranty.
- Includes lifetime technical support by phone for our team of experts, all with hands-on machine experience.
- Manufacturer
- Specifications
- Required products

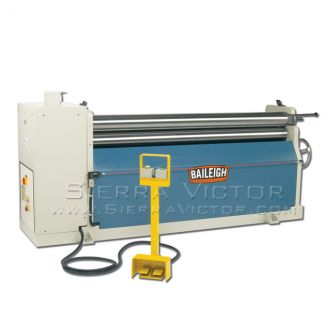

BAILEIGH 6' x 9 ga. Plate Roll PR-609
ITEM: 6' x 9 ga. Plate Roll
MANUFACTURER: BAILEIGH
MODEL: BA9-1006577
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
9 ga
Forming Width
|
72"
|
Roll Speed
|
4.67 rpm.
|
Upper Roll Dia.
|
5.91"
|
Roll Adjustment Back
|
Hydraulic
|
Minimum Forming Dia
|
8.86"
|
Capacity (Mild Steel)
|
9 ga. (.150")
|
Motor
|
3 HP
|
Power
|
220V / 3-phase
|
Shipping Dimensions (L / W / H)
|
114" x 32" x 52"
|
Shipping Weight
|
5,610 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
