- Description
- 2" maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT5 spindle
- Large 63" column
- Box shape worktable
- 220V 3-phase
- Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
- Manufacturer
- Specifications

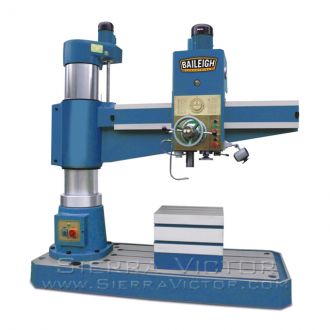

BAILEIGH RD-1600H Hydraulic Radial Drill Press
Are you in the market for a large radial drill for you fabrication shop? Does it have to have a really large swing? Then the RD-1600H hydraulic radial drill press is for you. This press has a 5.25hp motor that is powered by 220 volt three phase power.
ITEM: 63" Hydraulic Radial Drill Press
MANUFACTURER: BAILEIGH
MODEL: BA9-1008486
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Radial Arm Drills
Power Source:
Hydraulic
|
Max. Drill Capacity
|
2"
|
|
Distance from Spindle to |
13.7" to 63"
|
|
Diameter of Column
|
13.7"
|
|
Spindle Taper
|
MT5
|
|
Spindle Travel
|
12.4"
|
|
Spindle Speed Range
|
25 to 2,000 rpm
|
|
Range of Spindle Feeds
|
.001" to .125"
|
|
Spindle Feeds
|
16
|
|
Distance Between Spindle |
12.6" to 48"
|
|
Table Size
|
24.8" x 19.6" x 19.6"
|
|
Base Size
|
94.4" x 39.3" x 7.8
|
|
Overall Size
|
98” x 40”~96” x 103”~112”
Accounting for Beam Movements |
|
Motor
|
5.25 HP
|
|
Power
|
220V, 3-phase
|
|
Shipping Dimensions
|
102.375” x 44” x 100”
|
|
Shipping Weight
|
9,460 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
