- Description
- Delivers 70 tons of pressure over its entire 98” length.
- Long enough to bend 8-foot pieces of mild steel.
- Runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system with a Vickers/Eaton pump will last for many years at peak capacity.
- Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
- Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.
- Hydraulic cylinders are near the back of the machine for convenient fluid changes.
- Runs in single-bend mode or programmable mode.
- Comes standard with 2 axes of control: stroke and back gauge distance.
- Simple controller is so intuitive that you could train someone to use it in 5 minutes.
- Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
- Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
- Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.
- Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
- You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
- Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
- Speed option lets you reduce cycle time and make your shop more efficient.
- Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
- The 23.62" back gauge can advance or retract according to programmed instructions.
- Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
- Weighs a robust 9,251 lbs. for massive structural strength that ensures accurate results.
- Includes support arms around 2 feet in length.
- Comes standard with tooling: a multi-Vee bottom die and gooseneck punches.
- Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
- Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
- Safety light curtains prevent the machine from bending when someone is too close.
- Light curtains will swing open and get out of the way when you’re doing a tool change.
- This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
- We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
- Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
- We offer a 1-year parts warranty.
- With lifetime technical support by phone, you can contact us any time and talk with service reps who have years of experience with industrial machinery.
- Manufacturer
- Specifications
- Custom Freight
- Required products

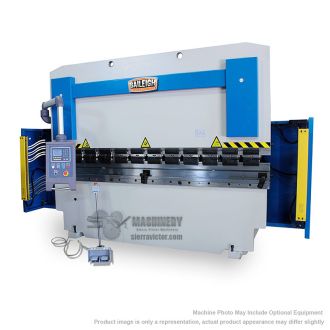

BAILEIGH Hydraulic Brake Press BP-7098CNC
Need an industrial press brake that’s easy to use? You can learn how to program the BP-7098CNC’s 2-axis controller in 5 minutes. A heavy steel frame keeps this machine accurate.
Accurate, User-Friendly Control System
Steel Plate Construction and Included Tooling
Fast Shipping and Lifetime After-Sale Care
Recommended for: Small-to-medium shops that want to improve the efficiency of their bending processes on a budget.
ITEM: 70 Ton x 98" CNC Hydraulic Press Brake
MANUFACTURER: BAILEIGH
MODEL: BP-7098 CNC
Manufacturer:
Baileigh Industrial
Maximum Pressure
|
70 Tons
|
Table Length
|
98.4"
|
Gauge Length
|
23.62"
|
Return Speed
|
2.36" / sec.
|
Throat Depth
|
9.8"
|
Stroke Distance
|
4.7"
|
Approach Speed
|
2.0" / sec.
|
Back Gauge Motor
|
1/2 HP
|
Bending Speed
|
.6" / sec.
|
Main Motor
|
7 HP
|
Distance Between Housings
|
80"
|
Distance From Table To Ram
|
14"
|
Power Requirements
|
220V / 3-phase
|
Shipping Dimensions
|
107" x 52" x 85"
|
Shipping Weight
|
9,251 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
