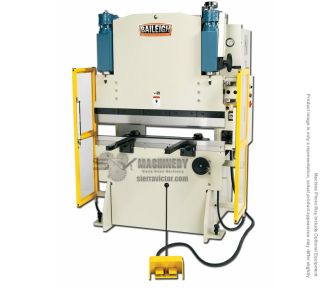

BAILEIGH 33 Ton x 4 ft Press Brake BP-3350NC

• Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production.
• Produces up to 33 tons of pressure
• Bends sheet metal up to 50" wide
• Maximum capacity of .098" thick sheet metal across the machine’s full width
• Requires 220-volt 3-phase power
• Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
• Powerful, Easy-to-Learn Hydraulic System
  • Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
  • 2 encoder-controlled hydraulic cylinders move the top beam.
  • Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
  • It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
  • You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
  • 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
  • Foot pedal brings the stroke up and down, leaving your hands free to position the material.
  • Motorized back gauge rides on a solid ball screw trolley mechanism.
  • Back gauge encoder shows its position on its own DRO.
  • Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
  • You can train your staff to use this press brake in 5 minutes.
• Rigid Structure and Low Maintenance
• Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
• Robust 2,640-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity.
• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
• Includes a set of hardened single-Vee American tooling.
• Accepts standard press brake tooling, giving you a wide variety of options.
• Comes with front material rests (or support arms), which some competing machines do not include.
• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
• 4 grease zerks let you add oil every few months.
• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
