- Description

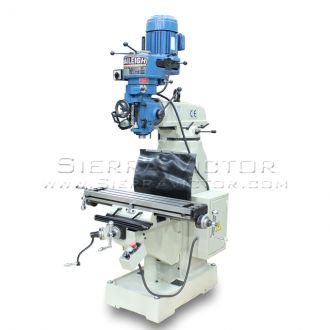

- The VM-836E vertical mill from Baileigh Industrial is the perfect mill for anyone just getting into machining. This small but powerful machine is based off of our popular VM-936E mill and offers many of the same features for a fraction of the cost. The VM-836E has an 8” x 36” working table and operates on 110 volt power making it perfect for any environment.

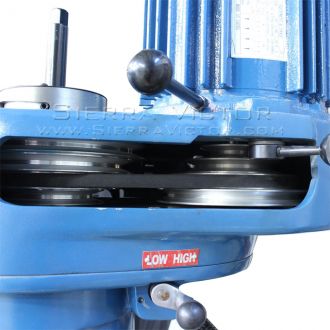

- The VM-836E uses a step pulley system that allows adjustment to the speed from 80 to 2720 rpm. Being able to tune the speed of the quill is important to prolong the life of the tooling and saving money. An R8 spindle is standard and having an R8 allows a wide variety of tooling that is readily available in just about any tooling store.

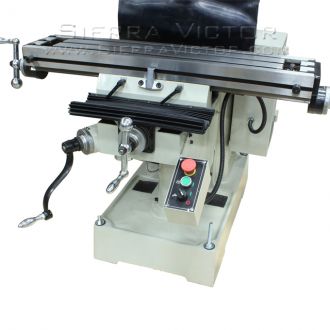

- 8"x 36" work table
- Compact size
- R8 spindle
- Perfect for milling, drilling, tapping, boring, and reaming

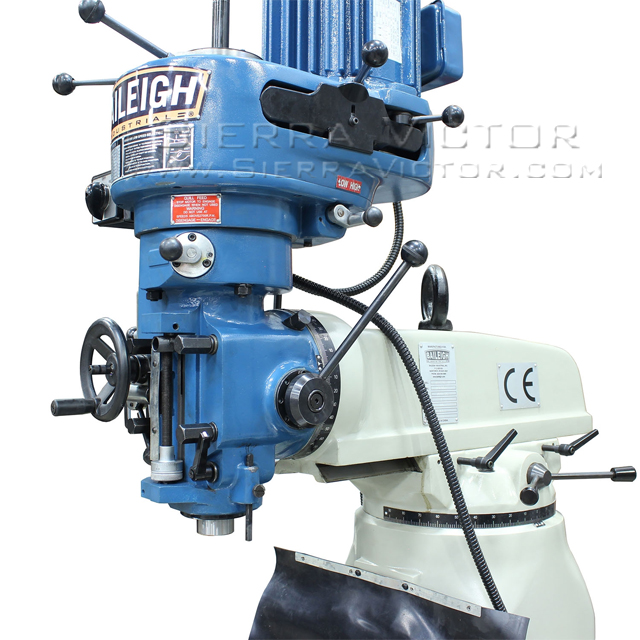

- Headstock can tilt 90 degree
- 8 speeds
- 110V
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax
BAILEIGH Vertical Mill VM-836E
ITEM: 8" x 36" Vertical Mill
MANUFACTURER: BAILEIGH
MODEL: VM-836E
Manufacturer:
Baileigh Industrial
Drilling Capacity
|
1.75" |
Milling Capacity
|
3.14" |
Spindle Taper
|
R8, 7/16"-20 |
Working Table Size |
36" x 7.875" |
Working Table Travel (X/Y) |
25.5" / 9.625" |
Spindle Nose to Worktable |
.875” ~ 15.625” |
Spindle Center to Column |
5.25” ~ 15.75” |
Spindle Travel |
5" |
T-Slot Width |
3 @ .625" |
Spindle Feed Per Rev |
.0034"/.0018"/.0056" |
Travel Manual Z Axis |
14.75" |
Table Load Capacity |
750 lbs. |
Rotating Head |
90° (R&L) |
Speeds
|
8 speeds, 80 to 2720 RPM |
Motor |
2 hp |
Power |
110 volt |
Shipping Dimensions
|
45" x 38" x 88" |
Shipping Weight
|
1,950 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
