- Description
- Everything about the PL-2080 industrial lathe is powerful, from its hardened slideways to the cast iron base. This engine lathe also includes a Mitutoyo DRO.
- 12 speeds from 20 to 1,500 rpm.
- 15 hp motor runs on 220-volt 3-phase power.
- Capable of making metric or standard threads.
- Mitutoyo 2-axis digital readout (DRO) system helps you obtain precise results.
- Polished ways with integrated wipers move as smoothly as the day they were made for years.
- Square indexing tool post.
- Lathe body is made from the best iron castings to ensure a rigid and stable platform.
- Cast pieces are fully integrated with the head stock, so every joint is tight.
- No assembly required.
- Comes standard with:
- 3-jaw universal chuck (12”).
- 10” back plate.
- Micrometer saddle stop.
- Steady rest and follow rest.
- Longitudinal rapid traverse.
- Headstock chuck guard with automatic safety switch.
- Coolant system with rear splash guard.
- Halogen work light.
- Emergency foot brake.
- Covered by a 1-year parts warranty.
- Replacement parts are in stock for fast shipping from our Wisconsin headquarters.
- We include lifetime technical support by phone from our team of reps with hands-on metalworking experience.
- Manufacturer
- Specifications
- Custom Freight
- Required products
- Baileigh Sales Tax

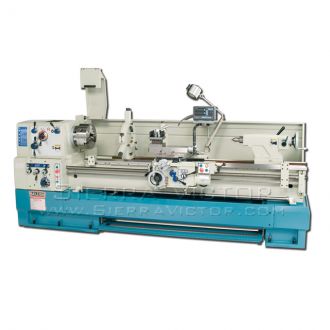

BAILEIGH Precision Metal Lathe PL-2080
ITEM: 20" x 80" Precision Metal Lathe
MANUFACTURER: BAILEIGH
MODEL: PL-2080
Manufacturer:
Baileigh Industrial
Country of Manufacture |
Taiwan |
Speed |
20 – 1550 rpm |
Spindle Bore |
3.125" |
Spindle Nose |
D1-8" |
Threads Diametrical Qty Speed |
50 / 4–112 D.P. |
Threads Imperial Qty Speed |
60 / 2–112 T.P.I. |
Threads Metric Qty Speed |
60 / .2–14 mm pitch |
Threads Module Qty Speed |
50 / .2-7 M.P. |
Spindle Taper Sleeve |
Morse #5 |
Spindle Taper Nose |
Morse #7 |
Tailstock Quill Dia |
2.9375" |
Tailstock Quill Taper |
Morse #5 |
Tailstock Quill Travel |
6.3125" |
Compound Rest Width |
10" |
Center Length |
80.313" |
Center Height |
10" |
Bed Height |
16.125" |
Longitudinal Feeds Metric Qty Speed |
50 / .037 – .983 mm / rev. |
Main Motor |
15 HP |
Longitudinal Feeds Imperial Qty Speed |
50 / .0014" – .0387" / rev. |
Lead Screw Diameter |
1.5" |
Lead Screw Thread Pitch |
4 T.P.I. |
Max. Swing In Gap Length |
7.0625" |
Max. Swing Over Bed |
20" |
Max. Swing Over Cross Slide |
13" |
Max. Swing In Gap Dia |
26.375" |
Cross Feeds Imperial Qty Speed |
50 / .0007" – .01935" / rev. |
Cross Feeds Metric Qty Speed |
50 / .0185 – .52 mm / rev. |
Cross Slide Travel |
12.5" |
Power
|
220V / 3-phase |
Shipping Dimensions (L/W/H)
|
121" x 54" x 67" |
Shipping Weight
|
6,050 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
