- Description

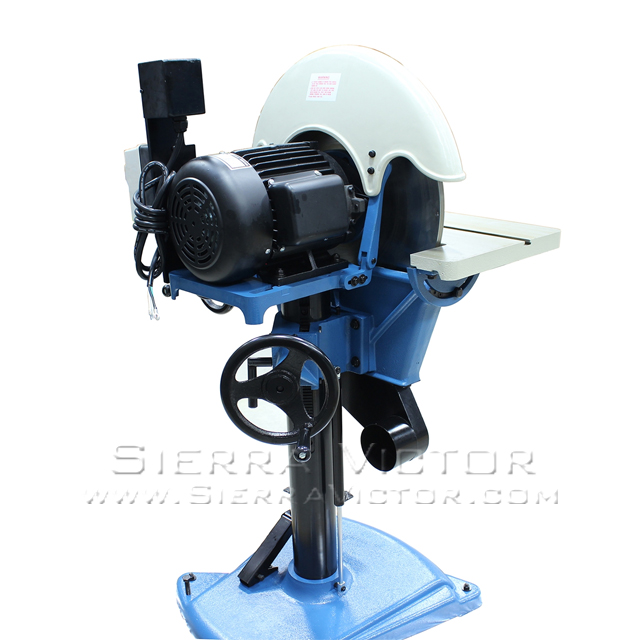

- Based off of the popular DG-500, the DG-500HD takes grinding to a whole new level. Perfect for those shops that use their grinders for production. This disc grinder comes with many features not found in other comparable machines.
- Robust 2HP, 1750rpm motor directly coupled to the 20” grinding disc.

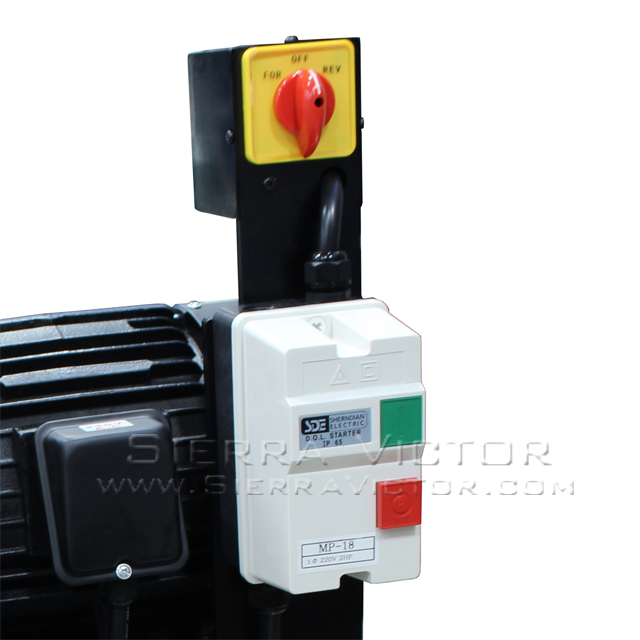

- Reversing switch – the grinding disc can be used both clockwise and counter-clockwise.
- Foot Brake – Stops the disc in a few seconds vs a few minutes. Prevents having to waste material to stop the disc faster.
- 4” dust collection port.
- Gas cylinder for easy table lift assist.
- Miter gauge included
- Tilting table – 45° down 15° up
- Swing away disc guard
- 220 volt single phase
- We typically keep this 20" disc grinder and its parts in stock for fast deliveries.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone.
- Recommended for: Smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax
BAILEIGH Heavy Duty Disc Grinder DG-500HD
ITEM:20" Heavy Duty Abrasive Disc Grinder
MANUFACTURER: BAILEIGH
MODEL: DG-500HD
Machine Type
MODEL |
DG-500HD |
Table Size |
25.5" x 14.5" |
Motor |
2 hp |
Speeds |
1750 RPM |
Table Adjustments Downward |
45° |
Table Adjustments Upward |
30° |
Disc Diameter |
20" |
Disc Speed |
1,100 rpm |
Power |
220V / 1-phase |
Shipping Weight |
550 lbs. |
Special Notes |
Includes disc brake, miter gauge, and gas cylinder table lift support |
Shipping Dimensions |
30.5" x 28" x 54.5" |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
