- Description
- Built to last for years, the DP-1250VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a 20.8” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1.25” mild steel.

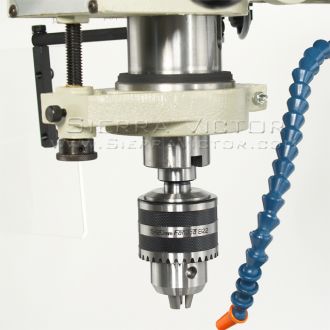

- Heavy duty spindle transfers power to the #4 Morse taper tooling .
- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 65 to 2000 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .75” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
- Base and 22” x 18.5” table are made of a heavy iron casting to increase rigidity.
- Very large .625" T-slots let a vise or fixture securely hold your material.

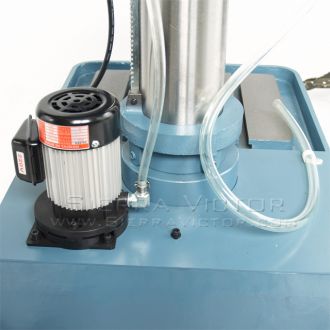

- Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
- Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
- Need it soon? We keep the DP-1250VS in stock for quick shipments.
- Manufacturer
- Specifications
BAILEIGH 1.25 inch High Speed Drill Press DP-1250VS
ITEM: 20" Heavy Duty Variable Speed Drill Press
MANUFACTURER: BAILEIGH
MODEL: BA9-1002869
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Drill Presses
Country of Manufacture
|
Taiwan
|
Table Size
|
22" x 18.5"
|
Quill Diameter
|
2.95"
|
Spindle Nose to Table
|
36.41"
|
Spindle Nose to Base
|
48.22"
|
Spindle Speed High
|
245 – 2000 rpm
|
Spindle Speed Low
|
85 – 540 rpm
|
Spindle Taper
|
MT4
|
Table Slot
|
.625"
|
Tapping Capacity
|
3/4"
|
Main Motor
|
2 HP
|
Power
|
220V / 1-phase
|
Swing
|
20.8"
|
Drill Capacity
|
1.25"
|
Spindle Travel
|
5.9"
|
Column Diameter
|
4.52"
|
Base Dimensions L x W
|
27" x 19"
|
Shipping Dimensions
|
40" x 25" x 83"
|
Shipping Weight
|
847 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
