- Description
- Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1-1/16” mild steel.

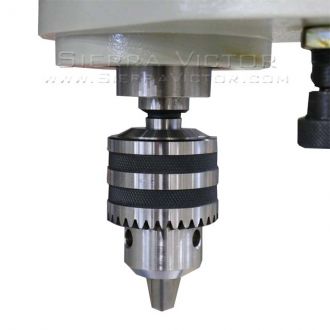

- Heavy duty spindle transfers power to the #3 Morse taper tooling .
- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .1/2” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

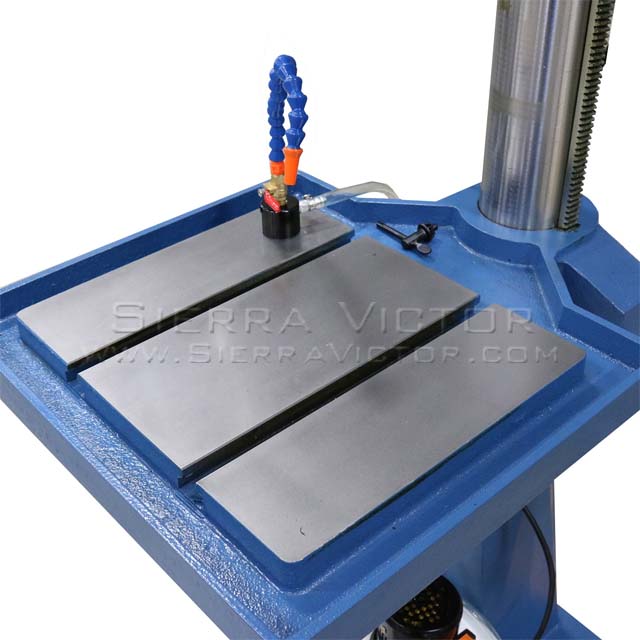

- Base and 16-3/4” x 19” table are made of a heavy iron casting to increase rigidity.
- Very large .625" T-slots let a vise or fixture securely hold your material.
- Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan.
- Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
- Need it soon? We keep the DP-1200VS in stock for quick shipments.
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax
BAILEIGH Variable Speed Drill Press DP-1200VS
ITEM: 22" Variable Speed Drill Press
MANUFACTURER: BAILEIGH
MODEL: DP-1200VS
Manufacturer:
Baileigh Industrial
Machine Type
Machine Category:
Drill Presses
Control:
Variable Speed
Swing |
20.8" |
Diameter of Column |
4" |
Distance Between Spindle Nose and Base |
1-1/4" Min. / 23-1/2" Max. |
Base Size |
25-3/4" x 16-1/2" |
Table Size |
16-3/4" x 19" |
Quill Diameter |
3" |
Stroke |
6" |
Spindle Nose to Table |
36.41" |
Spindle Nose to Base |
44-1/2" |
Spindle Speed |
10-2,250 RPM |
Spindle Taper |
MT3 |
Table Slot |
.625" |
Tapping Capacity |
1/2" |
Main Motor |
2 HP |
Drill Capacity Steel |
1-1/16" |
Power |
220V / 1-phase |
Drill Capacity |
1.25" |
Spindle Travel |
5.9" |
Column Diameter |
4.52" |
Shipping Dimensions |
35" x 22" x 77" |
Shipping Weight |
660 lbs. |
*Based on Max Tensile Strength of 64ksi
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
