- Description
- The R-M60-HD hydraulic driven ring roller won’t flinch while bending large radii out of tough materials. This tubing roller uses a ratcheting top roll to help simplify production runs.
- Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
- Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.
- All 3 rolls turn on industrial grade hydraulic motor.
- Integrated ratchet system controls the top forming roll’s movement for seamless adjustment.
- You can safely tip this pipe bender backward into a horizontal position with its unique manual tipping system when rolling larger diameters.
- Steel plate frame adds strength to the machine and minimizes flex.
- Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.
- Heavy steel construction ensures that the R-M60-HD will deliver accurate bends at maximum capacity for years.
- We use only the highest-quality components. For example, the Siemens brand inverter offers overload protection, keeps machinery from wearing out, and helps this pipe bender to last longer.
- Comes equipped with segment rolls, and lateral roll guides for coiling—features that some other companies might count as upgrades.
- Accepts durable tooling options, made and stocked by Baileigh, to suit a variety of applications.
- Expert assistance and advice is always a phone call away!
- Manufacturer
- Specifications
- Custom Freight
- Baileigh Sales Tax

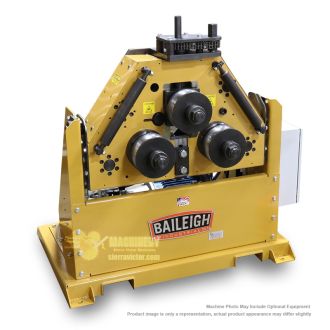

BAILEIGH Hydraulic Roll Bender R-M60-HD
ITEM: Hydraulic Roll Bender
MANUFACTURER: BAILEIGH
MODEL: R-M60-HD
Manufacturer:
Baileigh Industrial
Country of Manufacture |
United States |
Drive Type |
Hydraulic |
Driven Rolls |
3 |
Roll Adjustment |
Manual |
Main Drive Motor |
5 HP |
Pipe Capacity |
Size: 2" (sch. 40) / Min. Dia.: 48" |
Round Tube Capacity |
Size: 2.75" (.083") / Min. Dia.: 60" |
Square Tube Capacity |
Size: 2" (.120") / Min. Dia.: 51" |
Solid Round Capacity |
Size: 1.5" / Min. Dia. 28" |
Flat Bar Easy Way |
Size: 4" (.75") / Min. Dia. 28" |
Flat Bar Hard Way |
Size: 3.25" (.375")/ Min. Dia.: 32" |
Angle Iron Capacity |
Size: 2" (.250")/ Min. Dia.: 36" |
Shaft Diameter |
2.36" |
Shaft Center Distance Lower Rolls |
9.562" |
Lower Roll Dia. |
5.827" |
Pinch |
Single |
Power |
220V Single Phase |
Shipping Dimensions (L/W/H) |
60" x 44" x 68" |
Shipping Weight |
1,188 lbs. |
Material Type |
All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
*Optional Tooling |
Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
